XRSOLAR 3v Tiny Solar Panels price

XRSOLAR Makes epoxy solar panels for outdoor solar light
Small Solar Panel ->0.3W Tiny Solar Panel

3v Tiny Solar Panel price

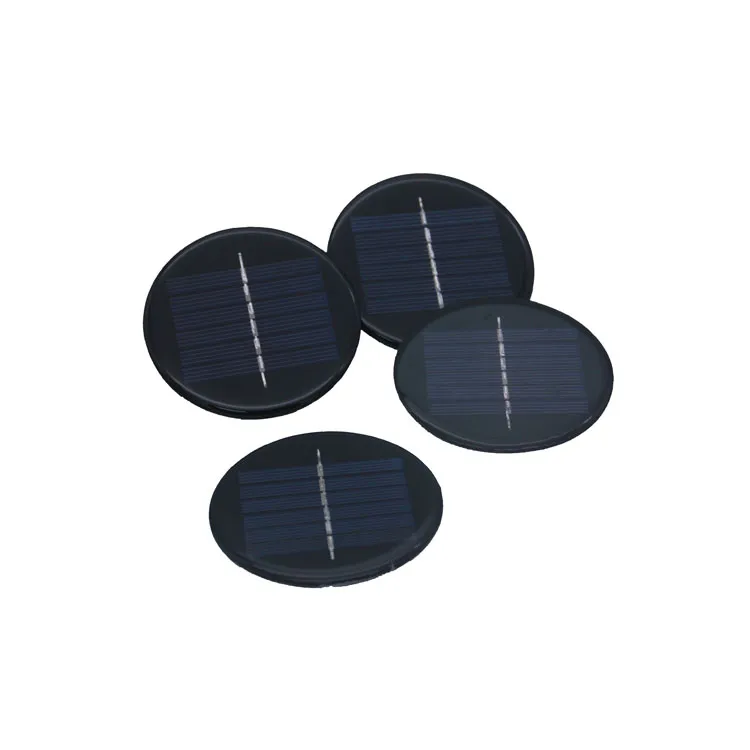

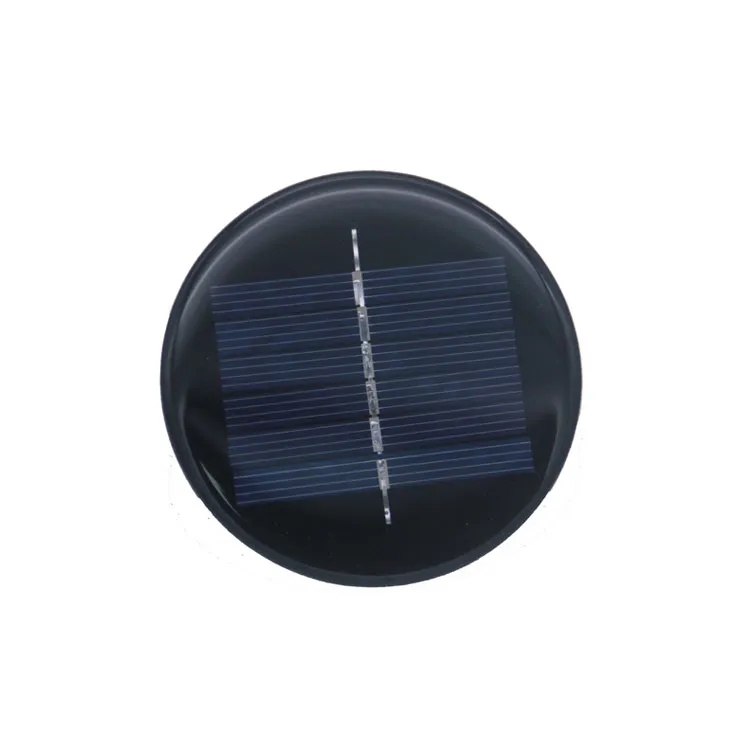

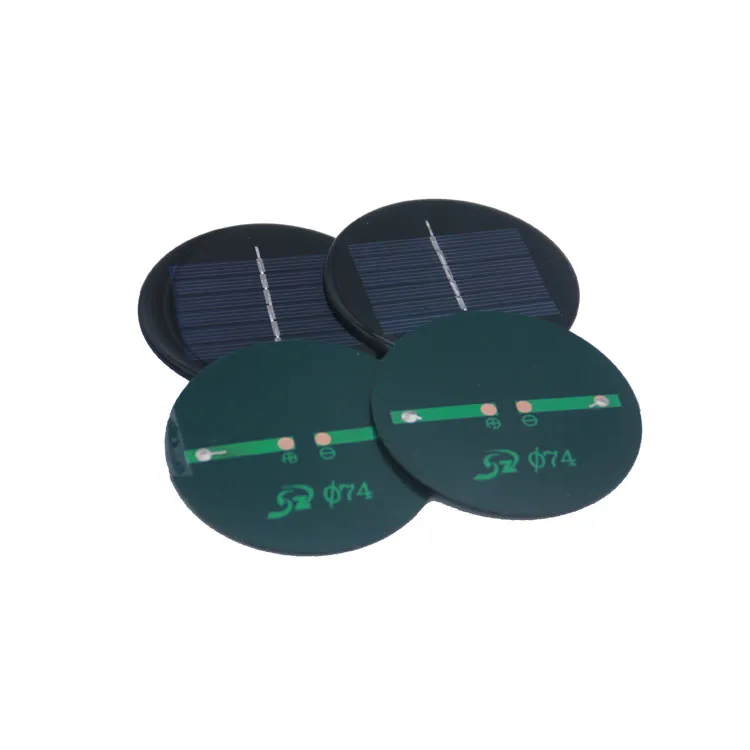

The 0.3watt 3v mini solar panel is designed for long term outdoor devices. The panel features:



  • High-efficiency mono solar cell
  • 6pcs solar cells in series.
  • Customized shap size for outdoor devices.

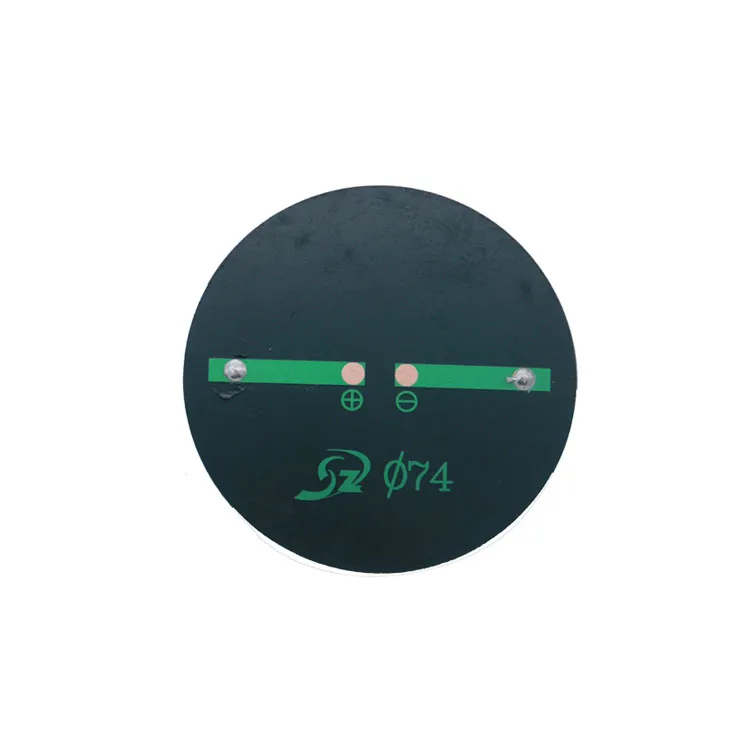

  • 2x solder pads



Harness the power of the sun with XRSOLAR compact and highly efficient 3v 0.3w mini solar panel.

Designed for a wide range of applications, this panel delivers consistent and reliable power in a small footprint.

At the core of its design is a A grade Monocrystalline silicon solar cell which ensures a high conversion rate, allowing it to generate power even in low-light conditions.

With a 3V output and 0.3W of power, this panel is the ideal solution for charging small electronics, powering DIY projects, and running a variety of low-power devices. Whether you’re building a solar-powered garden light, a weather station, or a portable charging kit for your gadgets, its compact, waterproof, and robust design makes it a versatile and dependable choice. Easy to integrate and built to last, our 0.3W 3V mini solar panel is the perfect foundation for your next off-grid project.





Features

  • Waterproof (IP67)
  • Durable and lightweight
  • High efficiency monocrystalline cells: 23+%
  • 18pcs solar cell in sereies
  • Customized solar cell
  • Customized size
  • customized voltage

Data sheets

  • Item Model: XRE-DIA74-3V
  • Maximum Power: 0.3 watt
  • Maximum Voltage (Vmp):  3V
  • Maximum Current (Imp): 100mA
  • Open Circuit Voltage (Voc): 3.6V
  • Short Circuit Current ( Isc):106mA
  • Efficiency of solar cell:  > 23%
  • Size: DIA74*3mm
  • Material : Epoxy resin Costing | 1.0mm  R2F PCB

Warranty

  •  1 years warranty on solar panels.



Download

2w 9v solar panel Datasheet





Custom small solar panel case:

Item No. Power (w) Vmp (v) Imp(mA) Size(mm) N.W (g) Material Technology
XRE-4026-4 0.12w 4v 30mA 40x26mm 15g MONO Epoxy
XRE-5050-4 0.2w 4V 50mA 50X50MM 20g MONO Epoxy
XRE-5959-4 0.36w 4v 90mA 59x59mm 20g MONO Epoxy
XRE-6060-6 0.3w 6v 50mA 60x60mm 20g MONO Epoxy
XRE-DIA74-3 0.3W 3V 100mA Dia74mm 20g mono Epoxy
XRE-9595-5.5 1w 5.5v 180mA 95X95MM 35g MONO Epoxy
XRP-12750-3 1w 3v 330mA 127x50.8mm 35g Mono PET
XRE-110110-7 1.2w 7v 170mA 110x110mm 60g MONO Epoxy
XRE-D115-4 1.2w 4v 300mA Dia115mm 40g MONO Epoxy
XRG-D160-10 2W 10V 200mA Dia160mm 70g Mono Glass
XRE-13085-5 1.5w 5v 300mA 130X85mm 60g MONO Epoxy
XRE-110100-6 1.6w 6v 270mA 110X100MM 55g MONO Epoxy
XRE-110120-8 1.9w 8v 235mA 110X120MM 55g MONO Epoxy
XRE-136110-9 2w 9v 220mA 136x110mm 60g MONO Epoxy
XRP-136110-6 2w 6v 330mA 136x110mm 60g MONO PET
XRE-110150-5 2.5w 5v 50mA 110x150mm 85g MONO Epoxy
XRE-165136-6 3.5w 6v 550mA 165x136mm 95g MONO Epoxy
XRP-165165-6 4.2w 6v 700mA 165x165mm 120g MONO PET
XRP-170200-6 5.1w 6v 850mA 170x200mm 150g MONO PET
