XRSOLAR 530W 540W 550w Solar Module 144pcs 182MM PERC half MONO solar cell
Cells Type : PERC MONO 182*91mm
Weight: 28.4kg
Dimension (L×W×T): 2279×1134×35mm
Cable: 4.0mm2 ; Portrait: N 400mm/P 300mm, Landscape: N 1400mm/P 1400mm
No.of Cells: 144 (6×24)
Glass : 3.2 mm High Transmission, Antireflection Coating
Junction box: IP68, 3 Bypass Diodes
Connector: QC4 or MC4 Compatible
Packing: 31pcs/pallet,155pcs/20GP; 620pcs/40HQ;
Description
XRSOLAR High-powered 550 Watt Monocrystalline Solar Panel maximizes power output while minimizing installation space and system equipment costs, primarily used for utility-scale systems, solar power plants, residential and commercial applications. This solar panel combines high efficiency mono PERC cells with Half-Cell and 10-Busbar technologies to improve the electrical performance and power output of your solar array system. Generate renewable energy, reduce electricity bills and carbon footprint.
Features
1.10 Busbar Solar Cell
10 busbar solar cell adopts new technology to improve the efficiency of modules, offers a better aesthetic appearance, making it perfect for rooftop installation.
2.High Efficiency
Higher module conversion efficiency (up to 23.5%) benefit from half cell structure ( low resistance characteristic).
3.PID Resistance
Excellent Anti-PID performance guarantee limited power degradation for mass production.
4.Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
5.Severe Weather Resilience
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
6.Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV NORD.
Specifications
| ELECTRICAL DATA | VSMH144-530 | VSMH144-540 | VSMH144-545 | VSMH144-550 | ||
| Nominal power Pm(Wp) | 530 | 540 | 545 | 550 | ||
| Open circuit voltage Voc (V) | 42.85 | 43.04 | 43.14 | 43.24 | ||
| Short-circuit current Isc (A) | 12.37 | 12.55 | 12.63 | 12.72 | ||
| Voltage at max power Vmp (V) | 48.8 | 48.9 | 49.7 | 49.8 | ||
| Current at max power Imp (A) | 13.55 | 13.67 | 13.69 | 13.71 | ||
| Module efficiency (%) | 20.75% | 20.94% | 21.12% | 21.33% | ||
| Dimensions (L x W x H ) (mm) | 2279*1134*35mm | |||||
| Module Power Tolerance | 0/±5w | |||||
| System Votlage (V) | 1000V/1500V DC(IEC) | |||||
| Operating temp. (°C) | -40°C to +85°C | |||||
| NOCT (°C) | 45±2 | |||||
| The electrical data apply to standard test conditions (STC): Irradiance of 1000 W/m2 with spectrum AM 1.5 and a cell temperature of 25°C. | ||||||
Packing & Dimensions
| Size of module(mm) | 2279*1134*35MM |
| Packing | 31pcs/pallet; 155pcs/20GP; 620PCS/40HQ |
Warranty
Manufacturer Warranty: 2 years product warranty and 10years 80% of power

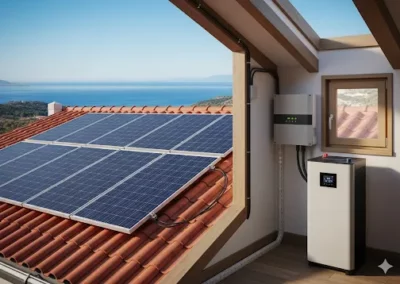

Application
Video
