GLASS SOLAR PANELS FOR OEM PROJECTS
Custom Glass Solar Panels for OEM & Outdoor Applications
Durable framed and frameless glass solar panels from 5W to 200W, engineered for custom size, voltage, mounting and product integration requirements.
GLASS SOLAR PANEL BASICS
What Are Glass Solar Panels?
Glass solar panels use tempered glass as the primary protective surface, providing a rigid structure, stable electrical performance and strong resistance to outdoor environmental exposure.
Compared with lightweight laminated panels, glass modules are better suited for applications that require long service life, structural stability and reliable performance in demanding outdoor environments.
XRSOLAR can customize glass solar panels based on your required size, voltage, power, frame structure, mounting method and connection requirements.
GLASS SOLAR PANEL OPTIONS
Custom Glass Solar Panel Options
Choose the right glass solar panel structure and power range based on your application, installation method and system requirements.
Framed Glass Solar Panels
Strong structural support for fixed outdoor installations, with flexible mounting and frame options.

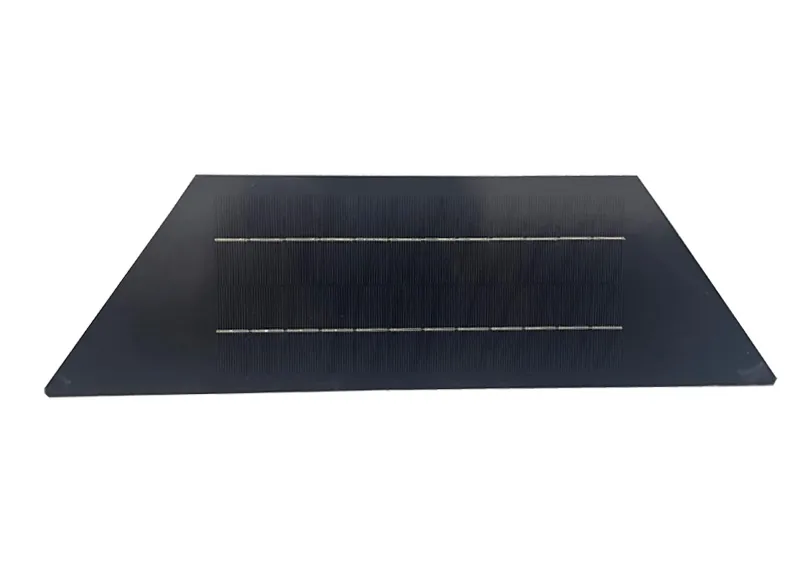

Frameless Glass Solar Panels
A clean, low-profile design for product integration, enclosures and custom mounting systems.
5W–30W
Compact power for sensors, monitoring equipment and small outdoor systems.
30W–100W
Suitable for remote equipment, industrial controls and medium-power off-grid applications.
100W–300W
Designed for larger equipment and systems with higher daily energy requirements.
Need an Custom Glass Solar Panel Designed for Your Application?
Share your size, voltage, power and installation requirements. Our engineering team will review your application and recommend a suitable glass solar panel design.
WHY GLASS SOLAR PANELS
Why Choose Glass Solar Panels?
Glass solar panels are designed for applications where structural stability, long service life and reliable outdoor performance are more important than minimum weight.
Long Service Life
Suitable for long-term outdoor installations and applications requiring durable performance.
Rigid Structure
Tempered glass provides strong mechanical protection and stable structural support.
Weather Resistance
Designed for UV exposure, moisture, temperature changes and demanding outdoor environments.
Stable Power Output
Rigid construction helps maintain consistent electrical performance over long-term use.
Custom Engineering
Size, voltage, frame, mounting, cable and connector options can be customized for your project.
Need a Glass Solar Panel Built for Long-Term Outdoor Use?
Share your size, voltage, power and installation requirements. Our engineering team will review your project and recommend a suitable glass solar panel design.
GLASS SOLAR PANEL APPLICATIONS
Applications for Custom Glass Solar Panels
Glass solar panels are a strong fit for applications that require rigid construction, long-term outdoor durability and stable power output.
Smart Agriculture
Solar solutions for agricultural sensors, irrigation controllers, weather stations and other low-power field equipment.
Marine Electronics
Custom glass solar panels for marine electronics, navigation equipment and monitoring systems exposed to demanding outdoor environments.
Remote Monitoring
Reliable solar solutions for unattended monitoring systems, telemetry units and remote sensors operating where grid power is unavailable.
Industrial Equipment
Suitable for control systems, field instruments and equipment requiring stable off-grid power.
Outdoor Electronics
Custom solar panels for outdoor sensors, controllers, smart blinds, communication devices and battery-powered electronics.
Off-Grid Equipment
For standalone equipment and remote installations where reliable long-term solar charging is required.
Need a Glass Solar Panel for a Specific Application?
Tell us your installation environment, power requirements and available space. We’ll recommend a suitable glass solar panel configuration.
GLASS SOLAR PANEL CONSTRUCTION

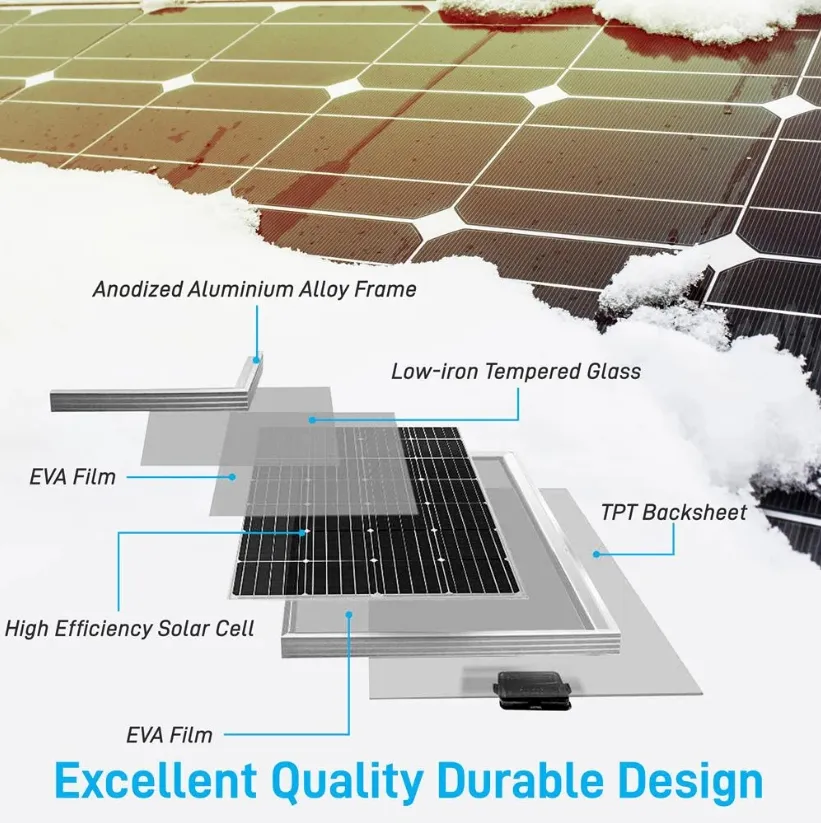

Glass Solar Panel Structure & Materials
A typical glass solar panel combines tempered glass, solar cells, EVA encapsulation and a rigid rear structure to provide stable electrical performance and long-term outdoor protection.
Need Help Choosing the Right Glass Solar Panel Structure?
Share your size, voltage, installation method and environmental requirements. Our engineering team can recommend a suitable glass structure and configuration for your project.
CUSTOMIZATION OPTIONS
Custom Glass Solar Panel Design Options
XRSOLAR can customize the mechanical and electrical design of glass solar panels to match your product, installation method and system requirements.
Built Around Your Project Requirements
We provide OEM/ODM glass solar panel solutions for industrial equipment, remote monitoring, outdoor electronics and other long-term applications.
Size & Shape
Customize panel dimensions and layout to fit your available installation space.
Voltage & Power
Match panel voltage and power output to your battery, charging circuit and system requirements.
Cable & Connector
Customize cable length, wire type, connector and cable outlet position.
Mounting Method
Support mounting holes, aluminum frames and other fixing methods based on your installation design.
Panel Structure
Select framed or frameless construction based on strength, appearance and installation requirements.
Junction Box & Backside
Customize junction box, cable outlet, backside printing and identification requirements.
TECHNICAL CAPABILITIES
Glass Solar Panel Specifications & Available Models
Our glass solar panels can be customized across power, voltage, structure, dimensions and electrical connection requirements to support different OEM and outdoor applications.
| Specification | Available Options |
|---|---|
| Power Range | 5W–300W |
| Voltage | Custom based on system requirements |
| Structure | Framed / Frameless |
| Cell Type | Mono / TOPCon / Back-Contact |
| Dimensions | Custom dimensions |
| Front Material | Tempered Glass |
| IP Rating | Framed up to IP67 / Frameless up to IP65 |
| Cable & Connector | Custom |
| Junction Box | Custom |
| MOQ | 500 pcs/ model |
Final specifications depend on panel size, electrical requirements, structure and application conditions.
TECHNICAL CAPABILITIES
Reference Glass Solar Panel Models
Reference models shown below cover 5W–250W.Custom glass solar panel designs up to 300W are available upon request.
| Model | Power | Dimensions | Vmp | Imp | Voc | Isc | Weight |
|---|---|---|---|---|---|---|---|
| XRHM36-5 | 5W | 251 × 186 × 17 mm | 18V | 0.28A | 22.15V | 0.30A | 0.5 kg |
| XRHM30-10 | 10W | 335 × 225 × 17 mm | 18.15V | 0.55A | 21.6V | 0.61A | 0.8 kg |
| XRHM30-15 | 15W | 330 × 310 × 17 mm | 16.8V | 0.89A | 20.16V | 0.94A | 1.1 kg |
| XRHM18-20 | 20W | 340 × 400 × 17 mm | 9.86V | 2.03A | 10.41V | 2.16A | 1.2 kg |
| XRHM36-30 | 30W | 510 × 390 × 17 mm | 18.5V | 1.62A | 21.83V | 1.71A | 1.5 kg |
| XRHM30-40 | 40W | 550 × 390 × 17 mm | 18.15V | 2.20A | 21.55V | 2.31A | 2.1 kg |
| XRHM30-50 | 50W | 510 × 580 × 25 mm | 18.15V | 2.75A | 21.55V | 2.89A | 2.7 kg |
| XRHM36-60 | 60W | 650 × 450 × 17 mm | 18.15V | 3.31A | 21.55V | 3.47A | 3.05 kg |
| XRHM30-80 | 80W | 675 × 575 × 20 mm | 18.15V | 4.41A | 21.55V | 4.63A | 3.75 kg |
| XRHM36-90 | 90W | 615 × 580 × 25 mm | 21.18V | 4.25A | 24.09V | 4.46A | 4.2 kg |
| XRHM30-100 | 100W | 830 × 575 × 20 mm | 18.15V | 5.51A | 21.55V | 5.78A | 4.54 kg |
| XRHM33-110 | 110W | 840 × 670 × 25 mm | 19.04V | 5.78A | 23.01V | 6.15A | 6.0 kg |
| XRHM30-120 | 120W | 975 × 575 × 20 mm | 18.15V | 6.61A | 21.55V | 6.94A | 5.30 kg |
| XRHM30-150 | 150W | 1160 × 670 × 30 mm | 18.43V | 8.14A | 21.68V | 8.62A | 8.5 kg |
| XRHM72-160 | 160W | 1180 × 770 × 25 mm | 19.06V | 8.40A | 22.24V | 8.89A | 9.5 kg |
| XRHM64-190 | 190W | 1275 × 770 × 30 mm | 18.45V | 10.30A | 21.50V | 10.98A | 11 kg |
| XRHM30-200 | 200W | 1480 × 670 × 30 mm | 18.3V | 10.93A | 21.18V | 11.48A | 11 kg |
| XRBH52-200 | 200W | 1460 × 670 × 30 mm | 18.1V | 11.05A | 22V | 12.2A | 9.32 kg |
| XRBH56-250 | 250W | 1134 × 1110 × 17 mm | 19.4V | 12.89A | 22.97V | 13.65A | 12.5 kg |
| XRHM30-250 | 250W | 1600 × 770 × 25 mm | 19.4V | 12.89A | 22.97V | 13.65A | 12 kg |
These models are reference specifications. Panel dimensions, voltage, electrical configuration, cable, connector and mounting options can be customized according to your project requirements.
Need a Custom Glass Solar Panel Solution?
Our engineering team can review your size, voltage, power and installation requirements and recommend a suitable glass solar panel configuration.
MANUFACTURING & QUALITY CONTROL
From Custom Design to Glass Solar Panel Production
Every custom glass solar panel project follows a controlled development and production process, from requirement review and engineering design to testing, inspection and mass production.
Requirement Review
Review electrical load, battery specifications, installation surface, mounting requirements and application environment.
Engineering Design
Prototype Development
Produce custom samples for mechanical fit, electrical performance and installation verification.
04
Testing & Validation
Verify electrical output, dimensions, appearance and project-specific requirements before production approval.
05
Mass Production
Need a Glass Solar Panel Outside These Standard Specifications?
Share your target size, voltage, power and installation requirements. Our engineering team can review your project and develop a custom glass solar panel configuration.
OEM BUYER’S FAQ
Glass Solar Panel FAQ
Common questions about custom glass solar panel design, specifications, production and outdoor applications.
Q1. Can you customize the size and voltage of glass solar panels?
Yes. We can customize panel dimensions, voltage, power output, cable, connector, mounting and structure based on your project requirements.
Q2. What is the difference between framed and frameless glass solar panels?
Framed panels provide stronger mechanical support and easier mounting, while frameless panels offer a cleaner, lower-profile design for product integration.
Q3. What power range can you manufacture?
Our standard and custom glass solar panel solutions cover approximately 5W to 300W, depending on dimensions, voltage and structural requirements.
Q4. Are glass solar panels suitable for long-term outdoor use?
Yes. Tempered glass provides strong UV, moisture and environmental protection, making glass solar panels suitable for long-term outdoor installations.
Q5. Can you manufacture from our drawing or product dimensions?
Yes. You can provide a drawing, target dimensions, electrical requirements or installation details, and our engineering team can develop a suitable panel design.
Q6.What is the MOQ for custom glass solar panels?
The standard MOQ is 500 pcs per model, depending on panel size, structure and customization requirements.
Q7. How long does custom glass solar panel development take?
Prototype development typically takes around 15 working days, while mass production normally takes around 35-40 working days after sample approval.
Ready to Develop Your Custom Glass Solar Panel?
Share your application, dimensions and electrical requirements.
Our engineering team will review your project and recommend a suitable glass solar panel solution.
