XRSOLAR Upgrade Your Home with a 590W N-Type Solar Panel

Maximize your home's energy production with a 590W N-Type solar panel.
Flexible Solar Panel ->590w Solar panel for your home

XRSOLAR 590W Solar Panel for Your Home

Maximize Your Roof’s Potential: The 590W Solar Panel for Your home. The combination of half-cut cell technology and bifacial module can amplify the gain over the effect of current-reduction.



  • High Power Output (590W)
  • N-Type Mono solar cell

  • Bifacial Technology:The bifacial design can increase energy yield by up to 30%.
  • Durability and Performance: built to withstand the toughest Canadian weather.
  • Exceptional Warranty :25-year product and 30-year linear performance warranty.



Description

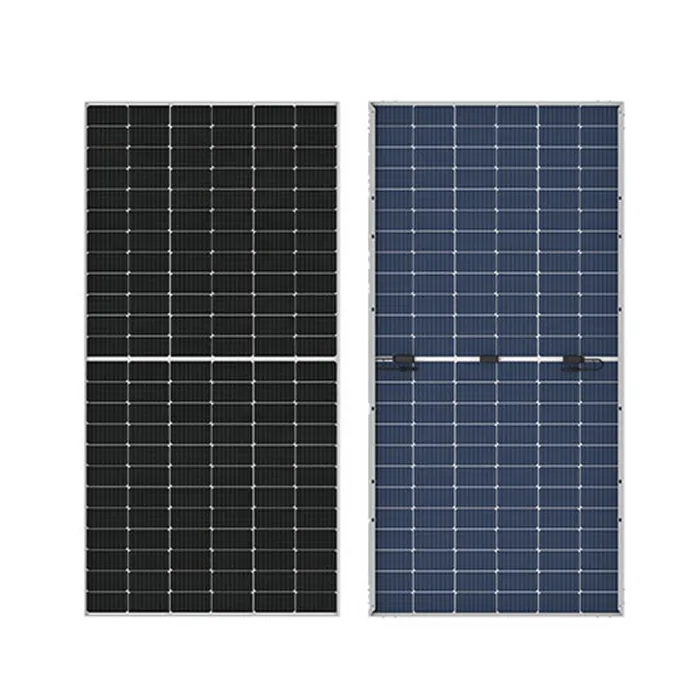

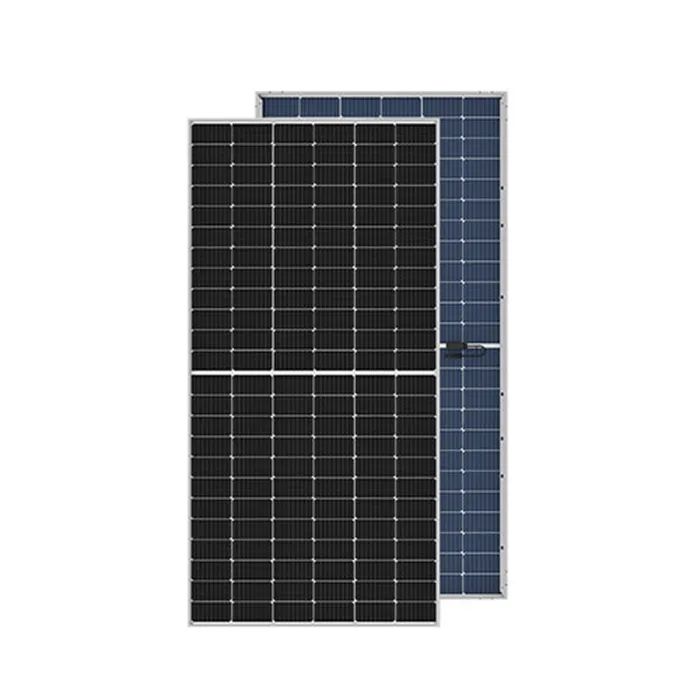

XRSOLAR 590W N-Type Bifacial Solar Panel represents a top-tier product in the solar energy market, combining two advanced technologies—N-Type solar cells and a bifacial design—to deliver exceptional performance, durability, and a high energy yield.

The 590W N-Type Bifacial Solar Panel is engineered for maximum energy generation, designed to capture sunlight not only from its front surface but also from its rear. This innovative design leverages reflected and diffused light (known as albedo) from the ground, rooftops, or other nearby surfaces, resulting in a significantly higher total energy output compared to traditional monofacial panels.

Features

  • N-Type Cell Technology: The core of this panel is its N-Type monocrystalline silicon cells. Unlike traditional P-Type cells, N-Type cells are doped with phosphorus, which makes them less susceptible to Light-Induced Degradation (LID) and Potential-Induced Degradation (PID). This translates to a more stable and consistent power output over the panel’s lifetime.
  • Higher Efficiency: N-Type cells have a longer minority carrier lifetime, which increases the cell’s open-circuit voltage and leads to a higher overall conversion efficiency, often exceeding 22%.
  • Lower Degradation: With a first-year degradation of around 1% and an annual degradation rate of as low as 0.4%, N-Type panels maintain their performance better over time.
  • Superior Temperature Performance: N-Type cells have a lower temperature coefficient, meaning they perform more efficiently in hot climates, where traditional panels often see a more significant drop in power output.
  • Enhanced Low-Light Performance: They are more effective at generating power in cloudy or low-light conditions
  • Bifacial Design: The bifacial structure allows the panel to generate electricity from both sides. Instead of an opaque backsheet, it features a transparent back, often made of durable dual-glass.
  • Increased Energy Yield: Depending on installation conditions—such as a reflective surface like a white roof, gravel, or even snow—a bifacial panel can produce 5% to 30% more energy.
  • Enhanced Durability: The dual-glass construction provides superior mechanical strength and resistance to micro-cracks, humidity, and other environmental stressors.

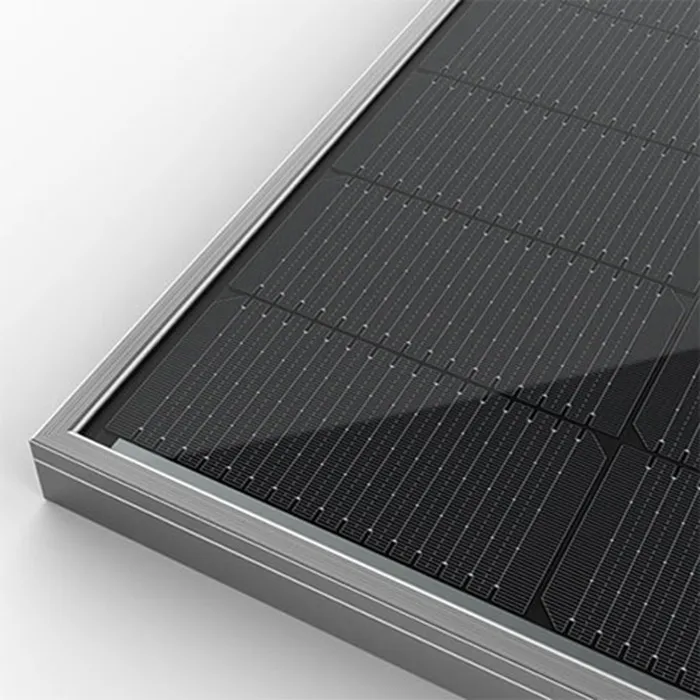

  • Half-Cell Configuration: The solar cells are cut in half, which reduces resistive losses, improves performance in shaded conditions, and increases durability.
  • Multi-Busbar (MBB) Technology: Multiple thin busbars on the cell surface improve current collection, further reducing power loss and making the panel more resilient to micro-cracks.

590w N-Type Solar Module  Specification



Standard test conditions(STC) XR580M10N-72H-BF XR585M10N-72H-BF XR590M10N-72H-BF XR595M10N-72H-BF
Nominal Power   Pm(Wp) 580 585 590 595
Voltage at max power  Vmp(V) 41.8 41.93 42.06 42.21
Current at max power Imp(A) 13.88 13.95 14.03 14.09
Open circuit Voltage   Voc(V) 50.3 50.43 50.56 50.65
Short-circuit current  Isc (A) 14.55 14.62 14.7 14.92
Module efficiency (%) 22.45% 22.65% 22.84% 23.03%



TECHNICAL DATA
Dimensions (L x W x H)  mm 2278*1134*30MM
Module Power Telerance ±5%
Junction Box 3 bypass diodes, IP68
Wire cross section and cable length 4mm2 and  300mm in length PV Cable
Weigth 32kg ±3%
Type of cells N-Type TOPCON CELL
No of cells / assembly 144 | 6*12

Standard test conditions ( STC): 1000W/M2 irradiance, 25°C module temperature, AM1.5



590w N-type Solar Module



If you need Solar Panel for your home, please  “ click here“, get more detail infomation.

How to connect in parallel and in series



How to connect in paralle and in series

XRSOLAR Factory — 590w N-type solar panel for your home

XRSOLAR Factory has advanced production equipment and technology, enabling the full-process production from raw material procurement to finished product manufacturing. XRSOLAR attaches great importance to the reliability of products. Strict supervision and testing are conducted at every production stage, aiming to provide customers with the best monocrystalline silicon solar panels.

XRSOLAR Factory
