200 W Solar Panels | 12V DC Solar Panel

XRSOLAR Rigid solar panels are a great off-grid power solution.
RV Solar Panels ->HPBC 200 w solar panels

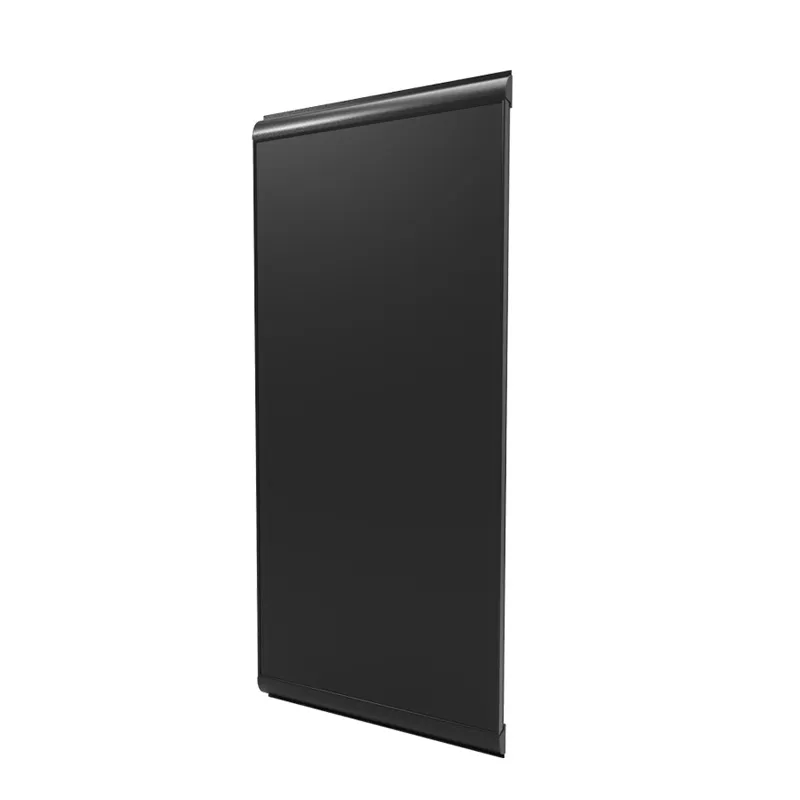

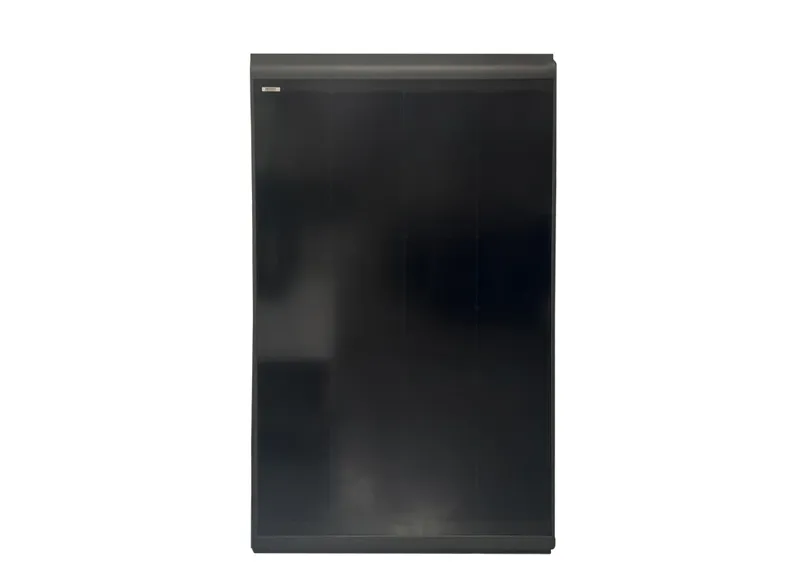

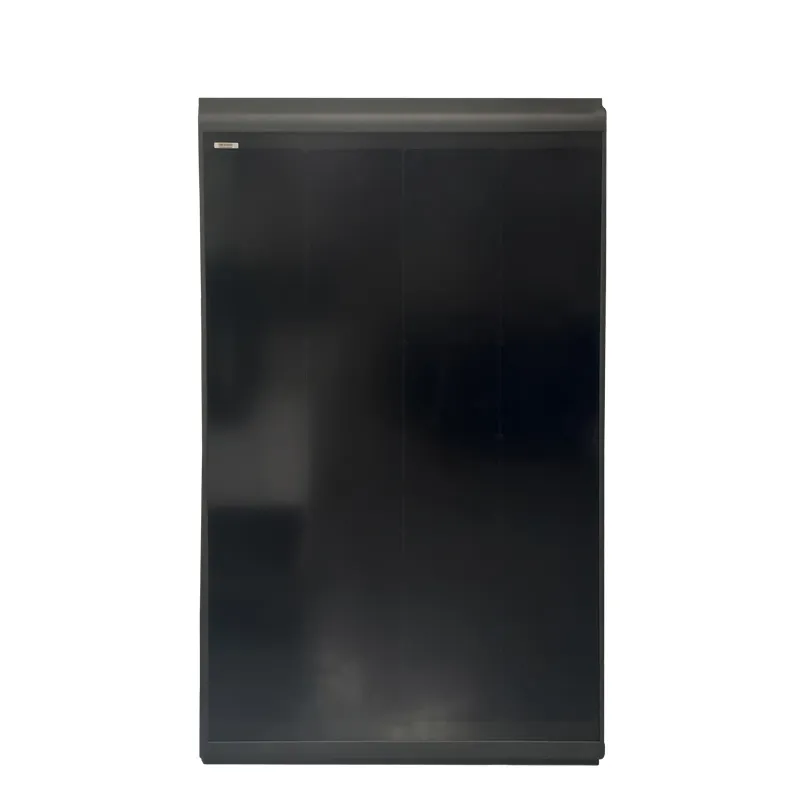

200W 18V Solar Panel | Premier 12V Off-Grid Solar Panel for RVs Cabins, Boats

200 w Solar Panel | 12V Mini Solar Battery Charger for Outdoor, Camping & Off-Grid Power.

  • High-efficiency HPBC Solar cells  >23%
  • Waterproof, 3.2mm thickness tempered glass
  • 90cm lenght PV cable with DC Connector
  • IP67/IP68 rated junction box.
  • Get more power from a smaller footprint.

Features

  • High Efficiency: This is the primary advantage of HPBC technology. Even at 200W, these panels will typically have a higher conversion efficiency (often exceeding 24% or even 25%) compared to traditional 200W monocrystalline or polycrystalline panels. This means you get more power from a smaller footprint.
  • Benefit: Ideal for applications where space is limited, such as RV roofs, boat decks, or small cabins, allowing you to maximize energy harvest from the available area.
  • All-Black Aesthetic: The most noticeable feature of HPBC panels is the absence of visible metal busbars on the front surface. This gives them a uniform, sleek, all-black appearance that is highly desirable for residential installations and aesthetically sensitive projects.
  • Improved Performance in Partial Shade: The back-contact design often creates multiple current pathways within the cell. This makes HPBC panels more tolerant to partial shading compared to traditional front-contact panels. If a small part of the panel is shaded, the power output of the entire panel might not drop as drasticall.
  • Like other high-quality rigid solar panels,  HPBC 200W solar panels are typically constructed with tempered glass, a robust aluminum frame (for rigid versions), and an IP67/IP68 junction box, ensuring resistance to weather elements (rain, snow, wind) and a long lifespan.

Data sheets

  • Item Model: XRBC-200W
  • Maximum Power: 200watt
  • Maximum Voltage (Vmp):  20.26V
  • Maximum Current (Imp): 9.8A
  • Open Circuit Voltage (Voc): 23.64V
  • Short Circuit Current ( Isc):  10.46A
  • Efficiency of solar cell:  > 24%
  • Size: 1460x670x30mm
  • G.W.: 11KG
  • Material : tempered ARC Glass | 30mm thickness aluminum frame

Download

   200w solar panel Datasheet

Description

HPBC (Hybrid Passivated Back Contact) solar panels, especially in the 200 Watt range, are becoming increasingly available and popular due to their high efficiency, sleek all-black appearance, and improved performance characteristics.





200 w solar panels

Application Versatility

  • RV & Marine: Excellent for recreational vehicles and boats due to their high power-to-size ratio and often sleek look. Flexible HPBC panels are particularly well-suited for curved RV roofs or boat decks.
  • Small Off-Grid Systems: Ideal for cabins, sheds, outdoor lighting, or backup power solutions where space or aesthetics are important.
  • Balcony Solar Systems: While 200W might be too large for some balcony setups depending on regulations and space, higher efficiency means fewer panels are needed for a given output, making them attractive for maximizing balcony generation where permissible.

Related custom mono solar panel

Item Power Size Net Weight Vmp Imp Voc Isc
XRM-20W 20 340*400*25 1.5 9.86 2.03 10.41 2.16
XRM-30W 30 470*400*25 2 10.11 2.97 11.82 3.16
XRM-40W 40 630*400*25 2.7 19.72 2.03 20.83 2.16
XRM-50W 50 510*580*25 3.2 20.41 2.45 24.57 2.61
XRM-60W 60 615*580*25 3.8 20.26 2.97 23.63 3.16
XRM-70W 70 570*670*25 4.1 20.18 3.47 23.65 3.69
XRM-80W 80 640*670*30 4.6 18.49 4.33 21.68 4.61
XRM-90W 90 800*580*30 4.9 21.18 4.25 24.09 4.46
XRM-100W 100 770*670*30 5.5 17.31 5.78 20.92 6.15
XRM-110W 110 840*670*30 6 19.04 5.78 23.01 6.15
XRM-120W 120 910*670*30 6.5 20.77 5.78 25.1 6.15
XRM-130W 130 1170*580*30 7.1 20.43 6.37 23.75 6.73
XRM-140W 140 1120*670*30 8 16.81 8.33 20.32 8.87
XRM-150W 150 1120*670*30 8 17.31 8.67 20.92 9.23
XRM-160W 160 1180*770*30 9.5 19.06 8.40 22.24 8.89
XRM-170W 170 1180*770*30 9.5 20.3 8.38 23.69 8.87
XRM-180W 180 1480*670*30 10.5 21.79 8.27 24.37 8.72
XRM-190W 190 1480*670*30 10.5 21.86 8.7 25.62 9.19
XRM-200W 200 1480*670*30 10.5 22.45 8.91 26.01 9.41
XRM-250W 250 1630*770*35 13.5 39.02 6.41 46.85 6.82
XRM-300W 300 1650*880*35 15.5 34.53 8.69 41.83 9.25
XRM-340W 340 1870*880*35 17.5 39.13 8.69 47.41 9.25
XRM-360W 360 1980*880*35 18.6 41.43 8.69 50.2 9.25
