XRSOLAR Custom Solar Panels
XRSOLAR Rigid solar panels are a great off-grid power solution.

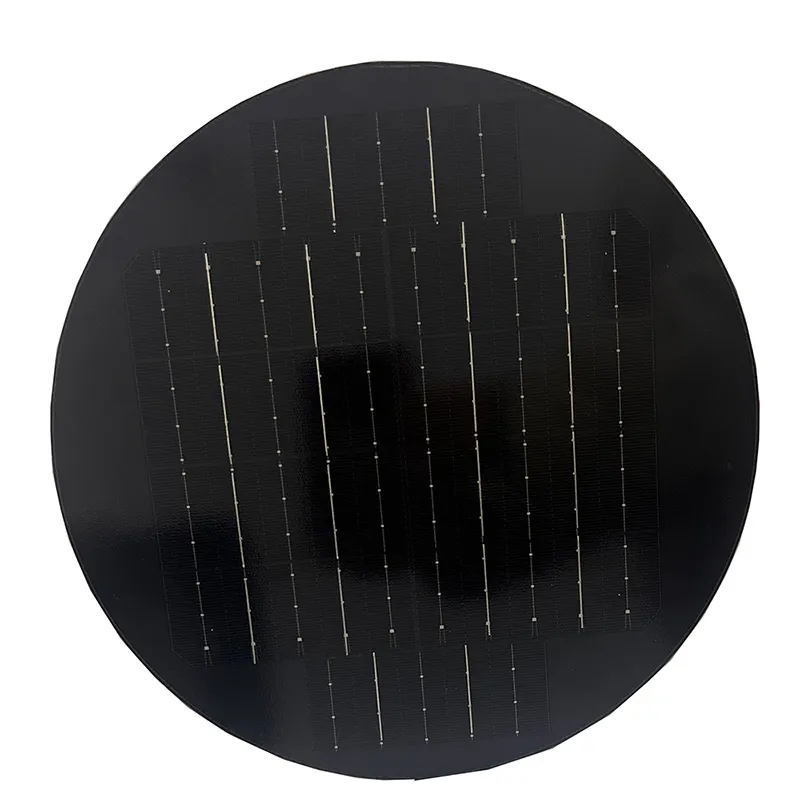

XRSOLAR Custom Round 6w Solar Panel
- Use tempered glass, high quality solar cell
- Provide customized size and voltage of glass solar panel
- Service life more than 10 years.
Description
XRSOLAR Customized glass solar panel use for garden light, traffic light etc. Rectangles, circles and other patterns can be provided.
Waterproof glass solar panel, have more than 10 years service life.
As long as you provide the required size and voltage, our engineers can design the glass solar panel to your satisfaction
Data sheets
- Item Model: XRM-D253-6w
- Maximum Power: 6.7watt
- Maximum Voltage (Vmp): 5V
- Maximum Current (Imp): 1.34A
- Open Circuit Voltage (Voc): 6.8V
- Short Circuit Current ( Isc): 1.4A
- Cell types & Size: 10pcs MONO Solar cell
- Efficiency of solar cell: > 22%
- Size: Dia253*3mm
- G.W.: 250G
- Material : tempered ARC Glass | Mono Solar cell | Frameless
Warranty
- 2 years warranty on solar panels.
Custom MONO Glass solar panel:
| Item | Power | Size | N. W(kg) | Vmp | Imp | Voc | Isc |
| XRM-20W | 20 | 340*400*25 | 1.5 | 9.86 | 2.03 | 10.41 | 2.16 |
| XRM-30W | 30 | 470*400*25 | 2 | 10.11 | 2.97 | 11.82 | 3.16 |
| XRM-40W | 40 | 630*400*25 | 2.7 | 19.72 | 2.03 | 20.83 | 2.16 |
| XRM-50W | 50 | 510*580*25 | 3.2 | 20.41 | 2.45 | 24.57 | 2.61 |
| XRM-60W | 60 | 615*580*25 | 3.8 | 20.26 | 2.97 | 23.63 | 3.16 |
| XRM-70W | 70 | 570*670*25 | 4.1 | 20.18 | 3.47 | 23.65 | 3.69 |
| XRM-80W | 80 | 640*670*30 | 4.6 | 18.49 | 4.33 | 21.68 | 4.61 |
| XRM-90W | 90 | 800*580*30 | 4.9 | 21.18 | 4.25 | 24.09 | 4.46 |
| XRM-100W | 100 | 770*670*30 | 5.5 | 17.31 | 5.78 | 20.92 | 6.15 |
| XRM-110W | 110 | 840*670*30 | 6 | 19.04 | 5.78 | 23.01 | 6.15 |
| XRM-120W | 120 | 910*670*30 | 6.5 | 20.77 | 5.78 | 25.1 | 6.15 |
| XRM-130W | 130 | 1170*580*30 | 7.1 | 20.43 | 6.37 | 23.75 | 6.73 |
| XRM-140W | 140 | 1120*670*30 | 8 | 16.81 | 8.33 | 20.32 | 8.87 |
| XRM-150W | 150 | 1120*670*30 | 8 | 17.31 | 8.67 | 20.92 | 9.23 |
| XRM-160W | 160 | 1180*770*30 | 9.5 | 19.06 | 8.40 | 22.24 | 8.89 |
| XRM-170W | 170 | 1180*770*30 | 9.5 | 20.3 | 8.38 | 23.69 | 8.87 |
| XRM-180W | 180 | 1480*670*30 | 10.5 | 21.79 | 8.27 | 24.37 | 8.72 |
| XRM-190W | 190 | 1480*670*30 | 10.5 | 21.86 | 8.7 | 25.62 | 9.19 |
| XRM-200W | 200 | 1480*670*30 | 10.5 | 22.45 | 8.91 | 26.01 | 9.41 |
| XRM-250W | 250 | 1630*770*35 | 13.5 | 39.02 | 6.41 | 46.85 | 6.82 |
| XRM-300W | 300 | 1650*880*35 | 15.5 | 34.53 | 8.69 | 41.83 | 9.25 |
| XRM-340W | 340 | 1870*880*35 | 17.5 | 39.13 | 8.69 | 47.41 | 9.25 |
| XRM-360W | 360 | 1980*880*35 | 18.6 | 41.43 | 8.69 | 50.2 | 9.25 |
Application
Garden Light
Outdoor Pool Cleaning
Solar Fountain
Outdoor Monitoring
Solar Tile
Solar Light
FAQ- customized solar panel
Q1: What exactly is a small solar panel?
A: “Small” generally refers to solar panels with a power output ranging from under 1 watt up to around 50 or 100 watts. These panels are typically compact, lightweight, and designed for portable or low-power applications, unlike the larger panels used for residential or commercial grid-tied systems.
Q2 :What can I power with a small solar panel?
A: Small solar panels are ideal for charging or powering:
- Smartphones, tablets, and other small electronic devices.
- LED lights (camping lights, garden lights, security lights).
- Portable power banks and battery packs.
- Sensors and IoT devices (weather stations, animal trackers, smart home devices).
- Small pumps for fountains or aquariums.
- Vessel Monitoring Systems (VMS) and other marine electronics.
- DIY projects and educational kits.
- Trail cameras.
Q3: How do I choose the right size small solar panel?
A: Consider the following:
- Device power consumption: Check the voltage and amperage (or wattage) of the device you want to power.
- Operating hours: How long do you need the device to run daily?
- Sunlight hours: How many hours of effective sunlight will your panel receive per day in its intended location?
- Battery capacity: The panel should be able to recharge your battery within a reasonable timeframe.
As a general rule, calculate your device’s daily energy consumption (Wh or Ah) and choose a panel that can generate at least 1.5 to 2 times that amount, accounting for inefficiencies and varying sunlight.
Q4: Do I need a battery with my small solar panel?
A: In most cases, yes. A small solar panel’s output can fluctuate based on sunlight, and it doesn’t generate power at night. A battery stores the energy collected by the panel, providing a stable and continuous power supply to your device, even when the sun isn’t shining.
Q5: What kind of battery should I use with a small solar panel?
A: The best battery type depends on your specific needs:
- Lithium-ion (Li-ion): Lightweight, high energy density, good for portable applications, but can be more expensive.
- Lithium Iron Phosphate (LiFePO4): Excellent lifespan, safer than traditional Li-ion, good for deep cycling, but can be heavier.
- Sealed Lead-Acid (SLA) / AGM: More affordable, robust, but heavier and generally have a shorter cycle life than lithium batteries.
Always choose a battery with a suitable voltage (e.g., 3.7V, 5V, 12V) that matches your device and panel.
