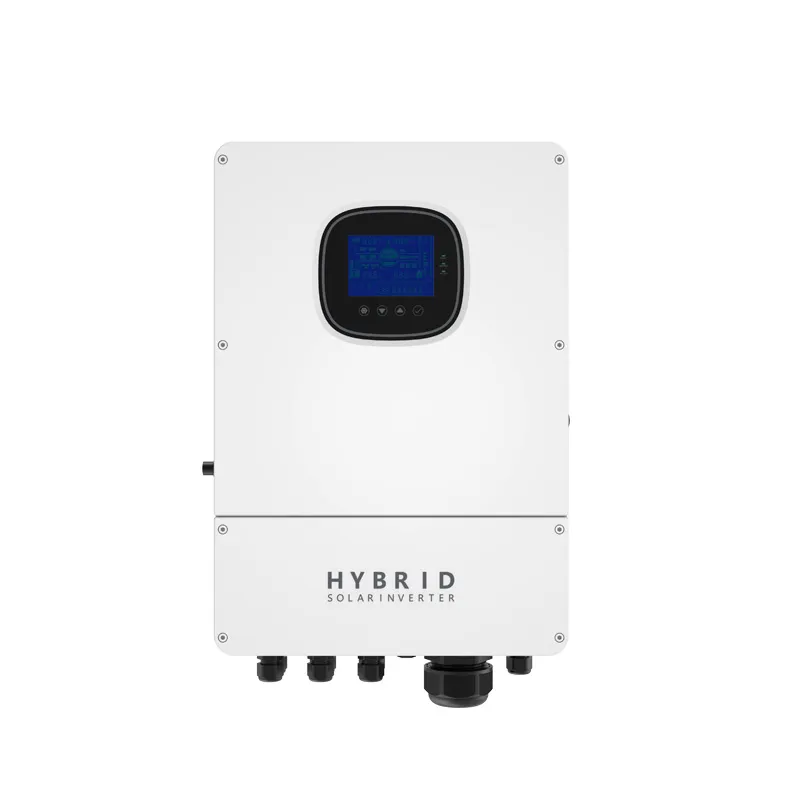

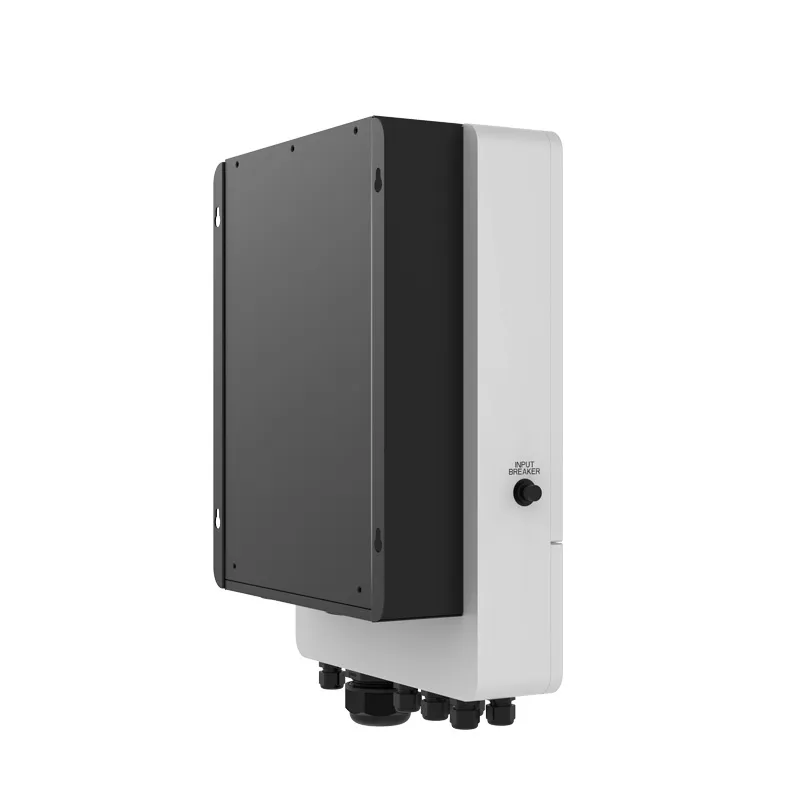

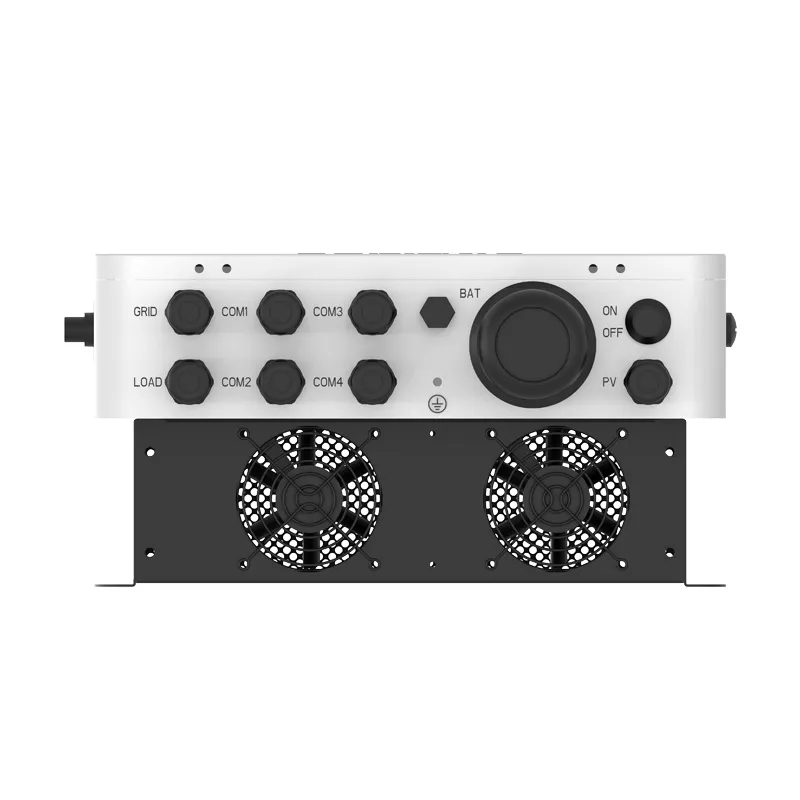

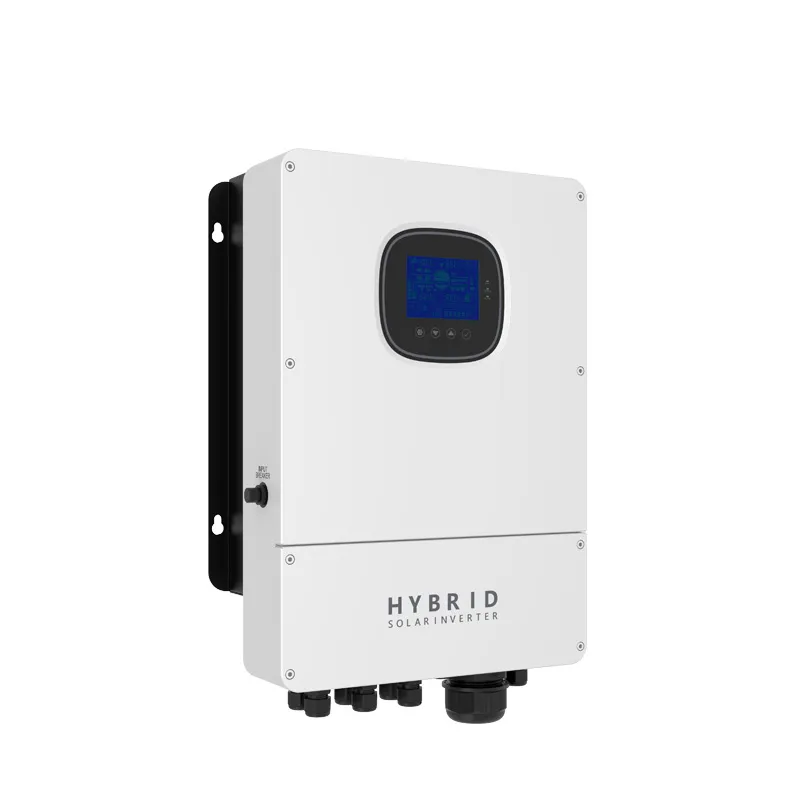

5.5KW OFF-Grid inverter| Power Your Remote Home & Cabin
5.5KW OFF-Grid inverter suitable for medium to large off-grid homes, cabins, or serious RV/mobile applications that have a significant demand for AC power.
- Working without battery under special conditions.
- Lithium battery activation function, which can be triggered by mains or PV.
- Four charging modes: PV Only, Mains Priority, PV Priority and PV&Mains hybrid charging.
- Two output modes: mains bypass and inverter output.
- Advanced MPPT technology with efficiency of 99.9%.
- LCD screen and three LED lights can clearly indicate the status and data.
- Intelligent and variablespeed fan, efficiently dissipate heat and extend system life.
Features
Inverter has the function of segmented charging and discharging,backflow prevention and grid connection
function.
- Working without battery under special conditions.
- Lithium battery activation function, which can be triggered by mains or PV.
- Four charging modes: PV Only, Mains Priority, PV Priority and PV&Mains hybrid charging.
- Two output modes: mains bypass and inverter output, with UPS function.Adopting full-digital double closed loop control, combined with advanced SPWM.
- Advanced MPPT technology with efficiency of 99.9%.
- LCD screen and three LED lights can clearly indicate the status and data.Intelligent and variable speed fan, efficiently dissipate heat and extend system life.
- Multiple safety protection functions: short circuit protection, overload protection, reverse polarity protection and so on.
Data sheets
| PRODUCT BASIC PARAMETERS | |
| Model | XR-PI-5.5KVA |
| Rated power | 5500W |
| Standard battery voltage | Lead-acid Battery or Lithium Battery 48VDC |
| Battery voltage range | 100A |
| Hybrid charging MAX charging current | 40VDC~60VDC ± 0.6VDC(Undervoltage/Shutdown Voltage/Overvoltage /Overvoltage Recovery Warning) |
| Installation method | Wall mount |
| PV INPUT PARAMETERS | |
| MaxPV Open-circuit Voltage | 500VDC |
| PV Working Voltage Range | 120-500VDC |
| MPPT Voltage Range | 120-450VDC |
| Max PV Input Current | 22A |
| Max PV Input Power | 600W |
| Max PV Charging Current | 100A |
| AC INPUT PARAMETERS | |
| Mains Max Charging Current | 60A |
| Rated Input Voltage | 220/260VAC |
| Input Voltage Range | UPSMains Mode：(170VAC~280VAC)±2% APL Generator Mode：(90VAC-280VAC)±2% |
| Frequency | 50Hz/ 60Hz (Automatic Detection) |
| Mains Charging Efficiency | ＞95% |
| Switch Time (bypass and inverter) | 10ms(Typical Value) |
| Max Bypass Overload Current | 40A |
| ACOUTPUTPARAMETERS | |
| OutputWaveform | PureSineWave |
| RatedOutputVoltage(VAC) | 230VAC 200/208/220/240VAC |
| RatedOutputPower(VA) | 6600VA |
| RatedOutputPowe(W) | 5500W |
| PeakPower | 11000W(1~3s) |
| On-loadMotorCapacity | 4HP |
| Output Frequency Range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz |
| MaximumEfficiency | >90% |
| No-loadLoss | Non Energy-saving Mode: ≤50W Energy-saving Mode：≤25W (Manual Setup） |
| BASIC PARAMETERS | |
| Working Temperature Range | -25°C ~ 55°C |
| Storage Temperature Range | -25°C ~ 60°C |
| Humidity Range | 0~100% |
| Waterproof Grade | IP65 |
| Product Size | 556*345*182mm |
| Product Weight | 19.2Kg |
Download
5.5kw off-grid inverter Specification
Who is a 5.5KW Off-Grid Inverter For?
- Medium to Large Off-Grid Homes: Can run refrigerators, freezers, lights, computers, entertainment systems, well pumps, and sometimes even small window AC units (with careful energy management and sufficient battery/solar).
- Larger RVs/Buses/Mobile Homes: For full-time living with a desire for home-like amenities.
- Workshops/Studios: Powering tools and equipment in remote locations.
- Emergency Backup Systems: As part of a robust backup system for essential loads.
Where to Use Your OFF-Grid Inverter
Hybrid Solar System

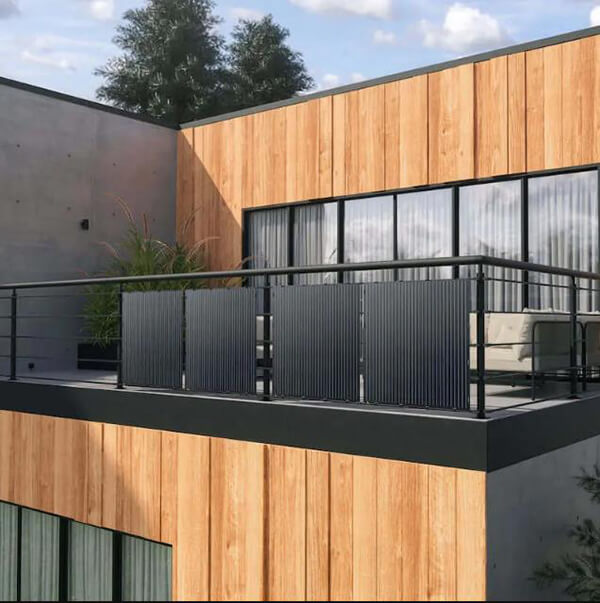

Balcony Solar system
OFF-Grid SYSTEM
Related Products
Complementary Products for a 5.5KW off-grid inverter: Solar Panel, Battery Storage, Solar Mounting ect.

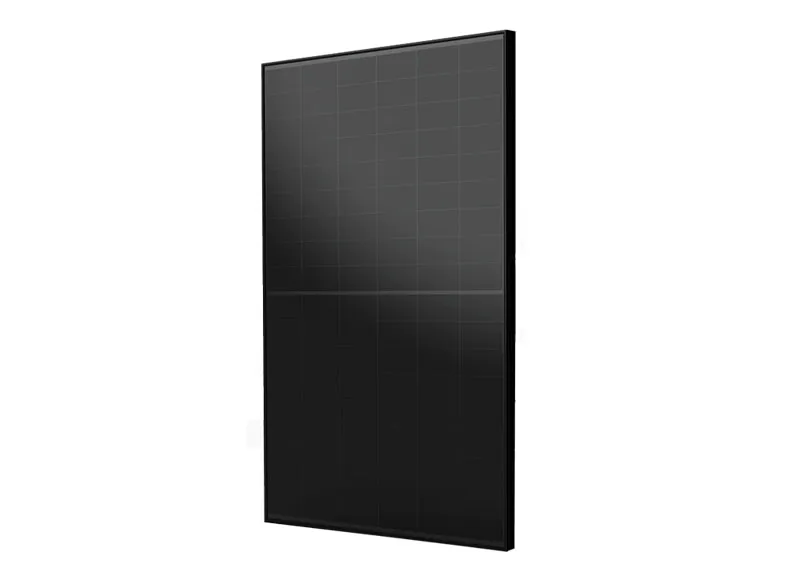

Solar Panel

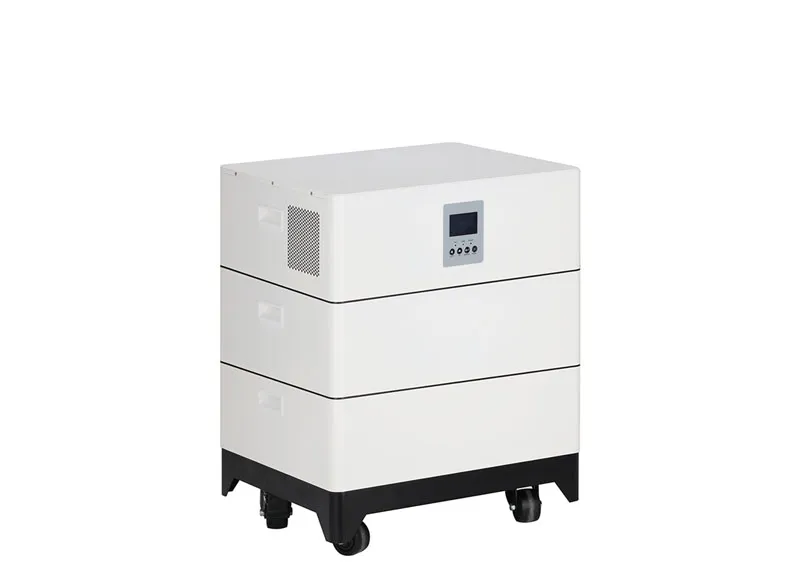

Battery Storage
