XRSOLAR 5v Customized Solar Panel for Window Shades

XRSOLAR Makes ETFE solar panels for outdoor IoT application

ETFE Solar Panel ->3.5w 5v Solar Panel for Window Shades

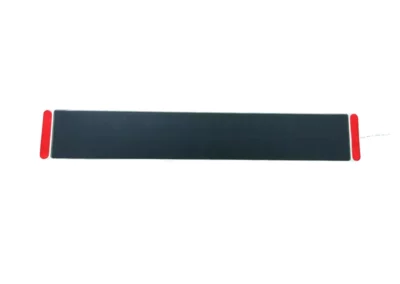

3.5w 5v Solar Panel for Window Shades

The 3.5watt 5v solar panel is designed for long term outdoor applications. The panel features:

High-efficiency BC Solar cells mounted to PCB using SMT Process
10pcs solar cells in series.
Waterproof, UV-and scratch-resistant PET Coating
2x solder pads
SMT Technology
Laser edge cutting

Ask for quote

Harness the power of the sun with XRSOLAR compact and highly efficient 3.5W 5v ETFE solar panel.

Designed for a wide range of applications, this panel delivers consistent and reliable power in a small footprint.

At the core of its design is a premium back-contact cell, which ensures a high conversion rate, allowing it to generate power even in low-light conditions.

Features:

Impressive Charging Capability: Our 3.5W 5.5V solar charging panel generates a current of 650mA under normal sunlight conditions, with charging efficiency varying based on sunlight intensity. On bright, sunny days, the solar panel can fully charge a 2500mA curtain motor in just 5 – 6 hours at its fastest rate. When sunlight is weaker, the panel’s charging capacity diminishes slightly, but it still reliably powers up your curtains. However, you may experience a longer charging time.
Uninterrupted Power Supply: Our solar panel provides a continuous and reliable power source for low-power indoor curtains, eliminating the need for additional outlets and keeping your space tidy and organized. For windows located at higher positions, it reduces the need for climbing up and down, saving your time and effort. It’s perfect for use in multiple areas like living rooms, bedrooms, kitchens and others.
Wide Compatibility: Our solar panel is compatible with lithium-ion battery-powered electric shades that have a battery capacity of 3500mAh or less. The charging panel itself comes with a USB-C charging cable, suitable for the motors of most low-power motorized blinds.
High Conversion Efficiency: Crafted with efficient and stable monocrystalline silicon material, our solar panel boasts a more stable current output and a longer lifespan compared to BC Solar Cell. With a conversion rate of up to 24%, it outperforms many competitors.

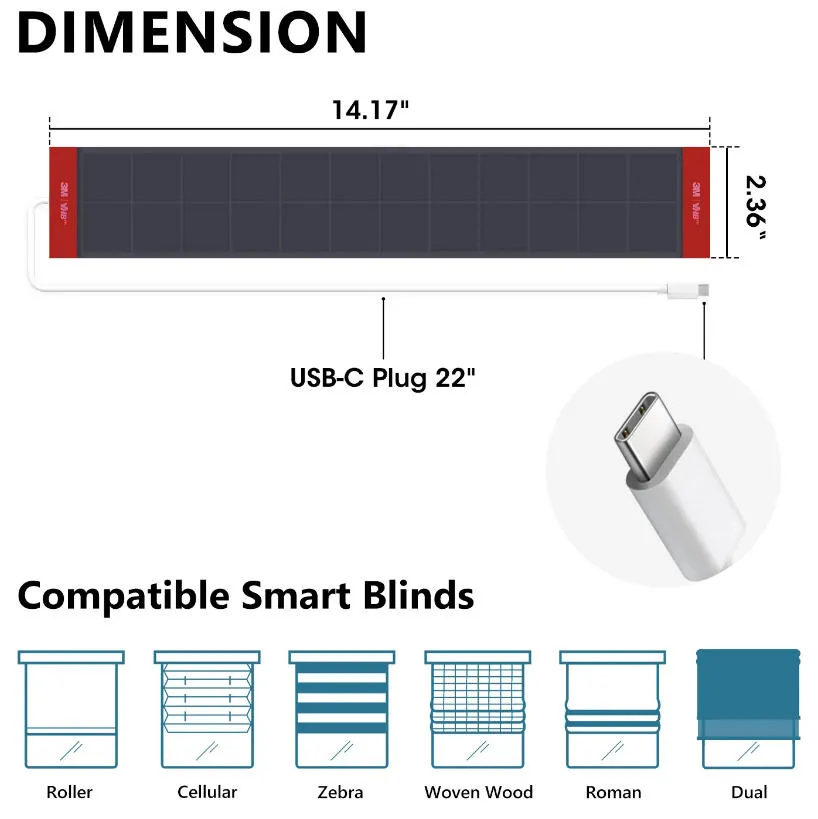

Lightweight and Durable: Our solar panel features a sleek and lightweight design, measuring 14.17 inches in length, 2.36 inches in width, and just 0.08 inches in thickness, weighing only 99 grams for easy installation. Equipped with high-temperature resistant and strong adhesive double-sided tape, the solar panel can be securely attached to your window, eliminating any concerns about it falling off during use.
