XRSOLAR 2Watt Solar Panels
XRSOLAR Small solar panels are a great off-grid power solution.

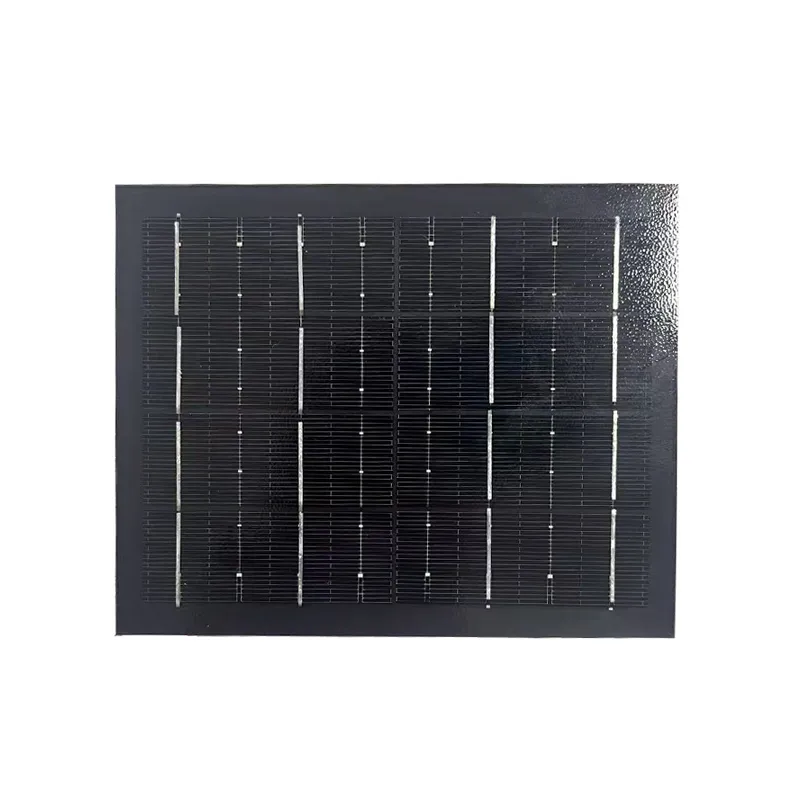

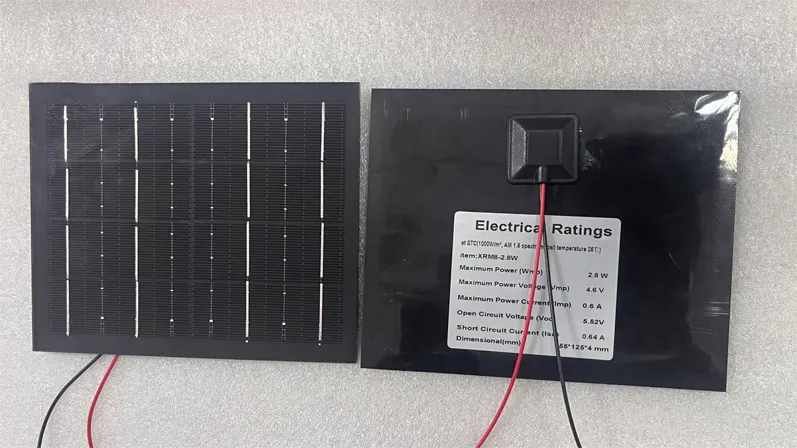

2w Solar Panel
2w Solar Panel | 4V Mini Solar Battery Charger for Outdoor, vessel monitor system & Off-Grid Power.
- High-efficiency PERC Solar cells >23%
- 8pcs solar cells in series.
- Waterproof, 3.2mm thickness tempered glass
- #20 AWG red and black wire
- IP65 rated junction box.
Features
- 2.8W Peak Power: Consistent output to meet your everyday low-power charging demands.
- 3v DC Output: Perfectly suited for charging 3V lead-acid and lithium batteries, as well as powering various 3V devices.
- High Conversion Efficiency: Uses premium solar cells to ensure efficient power generation, even in less-than-ideal light conditions.
- Off-Grid Capability: Ensures your VMS remains operational even when the vessel’s main power is off or experiencing issues.
- Versatile Applications: Ideal for camping, RVs, boats, garden lighting, security cameras, wireless sensors, and various DIY solar projects.
- Compact Size: Its small footprint makes it ideal for mounting on various parts of a vessel without obstruction.

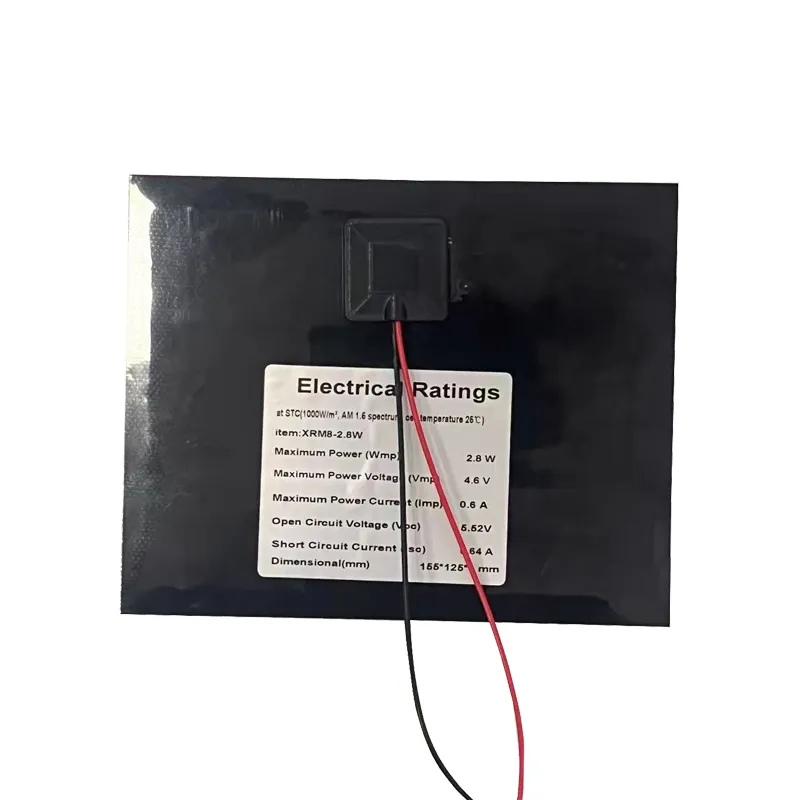

Data sheets
- Item Model: XRM8-2.8W
- Maximum Power: 2.8watt
- Maximum Voltage (Vmp): 4.6V
- Maximum Current (Imp): 0.6A
- Open Circuit Voltage (Voc): 5.5V
- Short Circuit Current ( Isc): 0.64A
- Cell types & Size: 70x26mm / 8pcs PERC MONO Solar cell
- Efficiency of solar cell: > 23%
- Size: 155x125x4.5mm
- Material : tempered ARC Glass
Description
XRSOLAR 2W solar panel is suitable, optimal performance depends on a few factors:
- VMS Power Consumption: Verify the exact power requirements (in watts or amps) of your specific VMS unit. A 2W panel generates approximately 0.6 amps at 3V in ideal conditions.
- Battery Storage: A small, deep-cycle battery (e.g., a 10-20Ah lithium-ion or sealed lead-acid) is essential to store energy and power the VMS during periods of low sunlight or at night.
- Charge Controller: A small solar charge controller (MPPT or PWM) is crucial to protect the battery from overcharging and deep discharging, maximizing its lifespan.
- Sunlight Availability: The actual power generated will depend on the amount of direct sunlight received.
- Mounting Location: Ensure the panel is mounted in an unshaded area, facing south (in the Northern Hemisphere) for maximum sun exposure.
Ideal Applications for a 2W Solar Panel with VMS:
- Small Fishing Vessels: Providing independent power for VMS compliance.
- Recreational Boats: Adding a VMS for security and tracking.
- Autonomous Buoys/Sensors: Powering remote monitoring equipment.
- Backup Power: Ensuring continuous VMS operation during electrical failures.
Packing & Dimensions
| Size of module(mm) | 155*125*4.5MM |
| Gross weight(kg) | 120g |
Warranty
- 2 years warranty on solar panels.
Download
Related custom mono solar panel
| Item | Power | Size | Net Weight | Vmp | Imp | Voc | Isc |
| XRM-20W | 20 | 340*400*25 | 1.5 | 9.86 | 2.03 | 10.41 | 2.16 |
| XRM-30W | 30 | 470*400*25 | 2 | 10.11 | 2.97 | 11.82 | 3.16 |
| XRM-40W | 40 | 630*400*25 | 2.7 | 19.72 | 2.03 | 20.83 | 2.16 |
| XRM-50W | 50 | 510*580*25 | 3.2 | 20.41 | 2.45 | 24.57 | 2.61 |
| XRM-60W | 60 | 615*580*25 | 3.8 | 20.26 | 2.97 | 23.63 | 3.16 |
| XRM-70W | 70 | 570*670*25 | 4.1 | 20.18 | 3.47 | 23.65 | 3.69 |
| XRM-80W | 80 | 640*670*30 | 4.6 | 18.49 | 4.33 | 21.68 | 4.61 |
| XRM-90W | 90 | 800*580*30 | 4.9 | 21.18 | 4.25 | 24.09 | 4.46 |
| XRM-100W | 100 | 770*670*30 | 5.5 | 17.31 | 5.78 | 20.92 | 6.15 |
| XRM-110W | 110 | 840*670*30 | 6 | 19.04 | 5.78 | 23.01 | 6.15 |
| XRM-120W | 120 | 910*670*30 | 6.5 | 20.77 | 5.78 | 25.1 | 6.15 |
| XRM-130W | 130 | 1170*580*30 | 7.1 | 20.43 | 6.37 | 23.75 | 6.73 |
| XRM-140W | 140 | 1120*670*30 | 8 | 16.81 | 8.33 | 20.32 | 8.87 |
| XRM-150W | 150 | 1120*670*30 | 8 | 17.31 | 8.67 | 20.92 | 9.23 |
| XRM-160W | 160 | 1180*770*30 | 9.5 | 19.06 | 8.40 | 22.24 | 8.89 |
| XRM-170W | 170 | 1180*770*30 | 9.5 | 20.3 | 8.38 | 23.69 | 8.87 |
| XRM-180W | 180 | 1480*670*30 | 10.5 | 21.79 | 8.27 | 24.37 | 8.72 |
| XRM-190W | 190 | 1480*670*30 | 10.5 | 21.86 | 8.7 | 25.62 | 9.19 |
| XRM-200W | 200 | 1480*670*30 | 10.5 | 22.45 | 8.91 | 26.01 | 9.41 |
| XRM-250W | 250 | 1630*770*35 | 13.5 | 39.02 | 6.41 | 46.85 | 6.82 |
| XRM-300W | 300 | 1650*880*35 | 15.5 | 34.53 | 8.69 | 41.83 | 9.25 |
| XRM-340W | 340 | 1870*880*35 | 17.5 | 39.13 | 8.69 | 47.41 | 9.25 |
| XRM-360W | 360 | 1980*880*35 | 18.6 | 41.43 | 8.69 | 50.2 | 9.25 |
