200W Caravan Solar System | 12V DC Solar Panel

200W Caravan Solar System| Premier 12V Off-Grid Solar Panel for Solar Generators Portable Power Stations

200W Caravan Solar System | 12V Mini Solar Battery Charger for Solar Generators Portable Power Stations

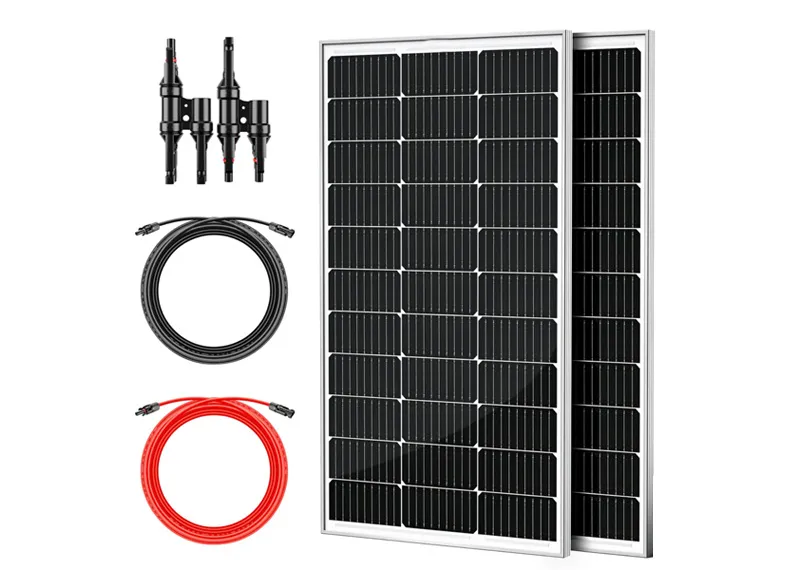

• 2 x 100W rigid Solar Panel
• 1 x 30′ #10 Gauge Solar Extension Cable (Red), Pre-assembled Female and Male Connector
• 1x 30′ #10 Gauge Solar Extension Cable (Black), Pre-assembled Male Connector and Female Connector
• 1 x Parallel Connectors (one pair 2 to 1)

Features

• High Efficiency Solar Panel
  With the highest-grade monocrystalline solar cells for optimal output, our 100 watt panel is a great solar system for RV trailers and vans because it has been treated with an anti-reflective coating to maximize light absorption.
• Simple Installation
  Installation is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, making expansions, upgrades, or additions simple and easy… just plug in and go!
• 25-Year Output Warranty
  Buy with confidence knowing that your solar investment will last for the long-haul, worth the solar panels for RV cost.

Data sheets

• Item Model: XRM-100W
• Maximum Power: 100watt
• Maximum Voltage (Vmp):  18.6V
• Maximum Current (Imp): 5.38A
• Open Circuit Voltage (Voc): 22.8V
• Short Circuit Current ( Isc):  5.78A
• Efficiency of solar cell:  > 24%
• Size: 770x670x30mm
• G.W.: 5.5KG
• Material : tempered ARC Glass | 30mm thickness aluminum frame

Download

   100w solar panel Datasheet

Description

A 200 Watt caravan solar system is a complete setup designed to generate and manage solar power for a recreational vehicle. It typically includes the solar panel(s) themselves, a charge controller, wiring, and often a battery and inverter. The goal is to provide enough power to keep your 12V caravan battery topped up and run common DC appliances, with the option to run some AC appliances via an inverter.

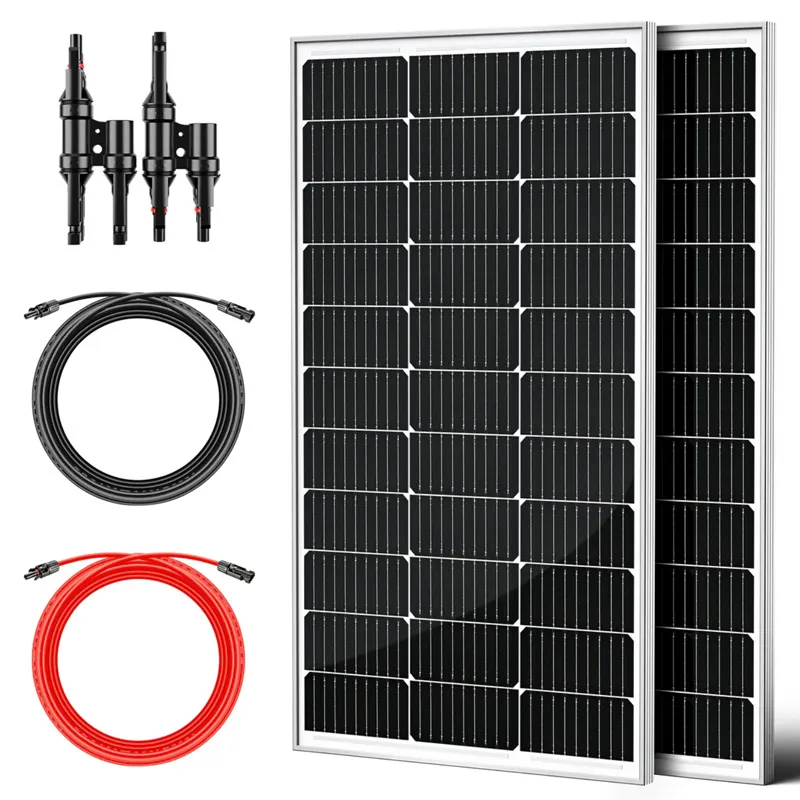

This 200w solar kit for Solar Generators Portable Power Stations.Including :

• 2 x 100W rigid Solar Panel
• 1 x 30′ #10 Gauge Solar Extension Cable (Red), Pre-assembled Female and Male Connector
• 1x 30′ #10 Gauge Solar Extension Cable (Black), Pre-assembled Male Connector and Female Connector
• 1 x Parallel Connectors (one pair 2 to 1)

Optional:

• Solar Charge Controller (Regulator) :Essential for safely charging the caravan’s leisure battery. It prevents overcharging, over-discharging, and optimizes the power flow from the panels.
• Deep Cycle Battery (or Battery Bank) :Stores the electricity generated by the solar panels for use when the sun isn’t shining (night, cloudy days).
• Power Inverter: Converts the 12V DC power from your battery into 120V (or 240V in some regions) AC power, allowing you to run standard household appliances (laptops, blenders, small TVs, coffee makers).
• Mounting: Z-brackets, tilt mounts, or adhesive for fixed panels; built-in kickstands for portable ones.

WHAT IS A BASIC SOLAR SYSTEM?

Understanding the basics of an off-grid solar system.

Where to Use Your Solar Panel

Custom Solar Panel with Easy

At XRSOLAR, We turn complex Into Simple! Follow the following 3 steps to start today!
