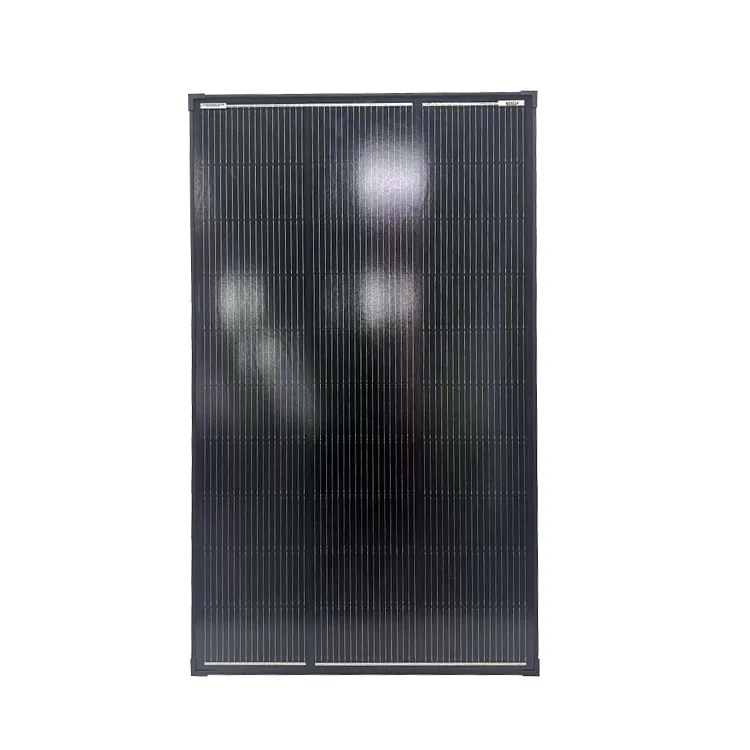

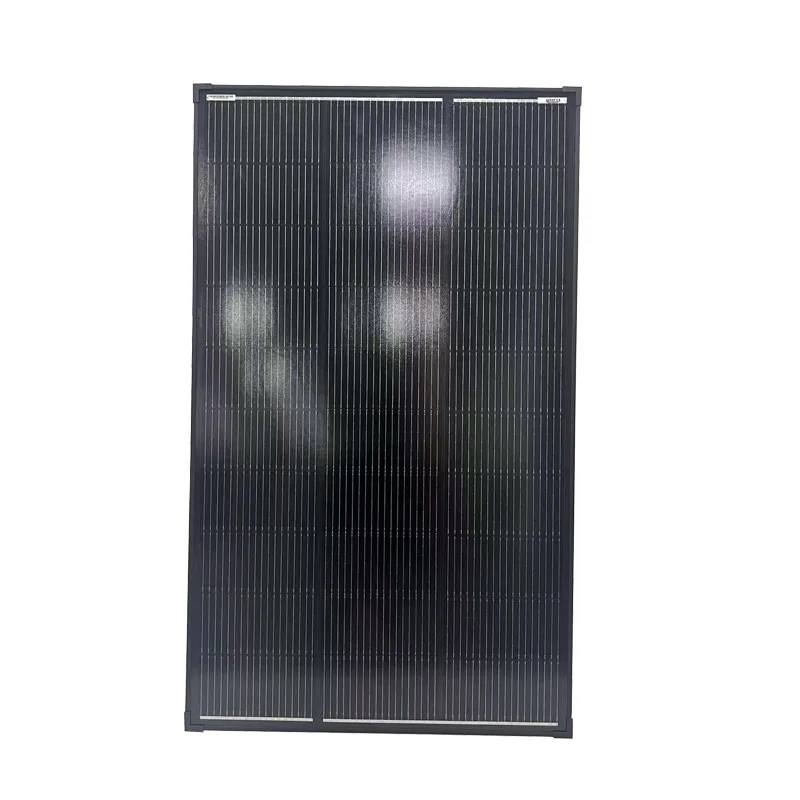

150W 12V Solar Panels
XRSOLAR Rigid solar panels are a great off-grid power solution.
150W 12V Solar Panel | Premier 12V Off-Grid Solar Panel for RVs Cabins, Boats
150w Solar Panel | 12V Mini Solar Battery Charger for Outdoor, Camping & Off-Grid Power.
- High-efficiency PERC Solar cells >23%
- 30pcs solar cells in series.
- Waterproof, 3.2mm thickness tempered glass
- 90cm lenght PV cable with MC4 Connector

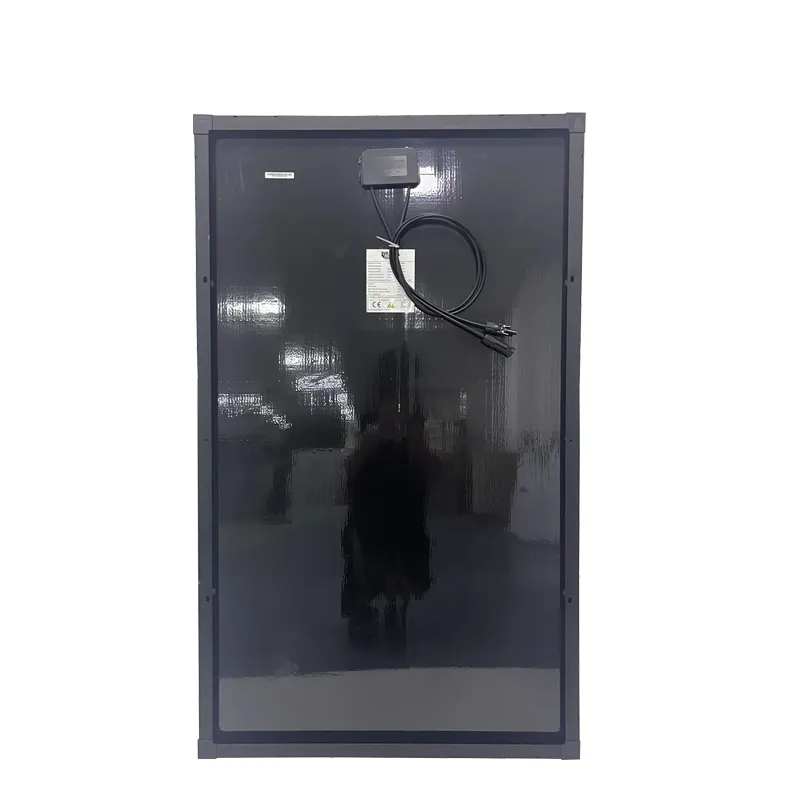

- IP65 rated junction box.
Features
- Robust 150W Output: Provides ample power for charging laptops, portable refrigerators, LED lighting, and various 12V devices.
- Superior Efficiency: Built with premium monocrystalline silicon solar cells for exceptional energy conversion, even in low-light conditions, maximizing your power generation.
- Built to Last: Features a highly weather-resistant and scratch-proof ETFE surface (or tempered glass) and a sturdy aluminum frame with an IP65 waterproof rating, ensuring long-term use in harsh outdoor conditions.
- Broad Compatibility: Equipped with multiple output interfaces (e.g., MC4, DC, USB-A, USB-C) to directly charge a wide range of solar generators, power stations, 12V batteries, and USB devices.
- Easy Setup: Includes integrated adjustable kickstands for quick deployment and optimal sun angle.
Data sheets
- Item Model: XRM30-150W
- Maximum Power: 150watt
- Maximum Voltage (Vmp): 18.43V
- Maximum Current (Imp): 8.14A
- Open Circuit Voltage (Voc): 21.56V
- Short Circuit Current ( Isc): 8.62A
- Cell types & Size: 210x105mm / 30pcs PERC MONO Solar cell
- Efficiency of solar cell: > 23%
- Size: 1120x670x30mm
- G.W.: 8.5KG
- Material : tempered ARC Glass | 30mm thickness aluminum frame
Download
Description
Introducing our 150W High-Efficiency Monocrystalline Solar Panel, your ultimate companion for outdoor adventures and independent power. This rigid solar panel is engineered for durability and top-tier performance, ensuring a consistent power supply in diverse environments.
Related custom mono solar panel
| Item | Power | Size | Net Weight | Vmp | Imp | Voc | Isc |
| XRM-20W | 20 | 340*400*25 | 1.5 | 9.86 | 2.03 | 10.41 | 2.16 |
| XRM-30W | 30 | 470*400*25 | 2 | 10.11 | 2.97 | 11.82 | 3.16 |
| XRM-40W | 40 | 630*400*25 | 2.7 | 19.72 | 2.03 | 20.83 | 2.16 |
| XRM-50W | 50 | 510*580*25 | 3.2 | 20.41 | 2.45 | 24.57 | 2.61 |
| XRM-60W | 60 | 615*580*25 | 3.8 | 20.26 | 2.97 | 23.63 | 3.16 |
| XRM-70W | 70 | 570*670*25 | 4.1 | 20.18 | 3.47 | 23.65 | 3.69 |
| XRM-80W | 80 | 640*670*30 | 4.6 | 18.49 | 4.33 | 21.68 | 4.61 |
| XRM-90W | 90 | 800*580*30 | 4.9 | 21.18 | 4.25 | 24.09 | 4.46 |
| XRM-100W | 100 | 770*670*30 | 5.5 | 17.31 | 5.78 | 20.92 | 6.15 |
| XRM-110W | 110 | 840*670*30 | 6 | 19.04 | 5.78 | 23.01 | 6.15 |
| XRM-120W | 120 | 910*670*30 | 6.5 | 20.77 | 5.78 | 25.1 | 6.15 |
| XRM-130W | 130 | 1170*580*30 | 7.1 | 20.43 | 6.37 | 23.75 | 6.73 |
| XRM-140W | 140 | 1120*670*30 | 8 | 16.81 | 8.33 | 20.32 | 8.87 |
| XRM-150W | 150 | 1120*670*30 | 8 | 17.31 | 8.67 | 20.92 | 9.23 |
| XRM-160W | 160 | 1180*770*30 | 9.5 | 19.06 | 8.40 | 22.24 | 8.89 |
| XRM-170W | 170 | 1180*770*30 | 9.5 | 20.3 | 8.38 | 23.69 | 8.87 |
| XRM-180W | 180 | 1480*670*30 | 10.5 | 21.79 | 8.27 | 24.37 | 8.72 |
| XRM-190W | 190 | 1480*670*30 | 10.5 | 21.86 | 8.7 | 25.62 | 9.19 |
| XRM-200W | 200 | 1480*670*30 | 10.5 | 22.45 | 8.91 | 26.01 | 9.41 |
| XRM-250W | 250 | 1630*770*35 | 13.5 | 39.02 | 6.41 | 46.85 | 6.82 |
| XRM-300W | 300 | 1650*880*35 | 15.5 | 34.53 | 8.69 | 41.83 | 9.25 |
| XRM-340W | 340 | 1870*880*35 | 17.5 | 39.13 | 8.69 | 47.41 | 9.25 |
| XRM-360W | 360 | 1980*880*35 | 18.6 | 41.43 | 8.69 | 50.2 | 9.25 |
Video
Where to Use Your Solar Panel
VAN
RV
OFF-Grid SYSTEM
WHAT IS A BASIC SOLAR SYSTEM?
Understanding the basics of an off-grid solar system.
