XRSOLAR 10KVA Solar Inverter for Home
Maximizing Your Solar Output: The Critical Role of a PV Inverter
10KVA OFF-Grid inverter|Hybrid Inverter | Power Your Remote Home & Cabin
10KVA OFF-Grid inverter suitable for medium to large off-grid homes, cabins, or serious RV/mobile applications that have a significant demand for AC power.
- Working without battery under special conditions.
- Lithium battery activation function, which can be triggered by mains or PV.
- Four charging modes: PV Only, Mains Priority, PV Priority and PV&Mains hybrid charging.
- Two output modes: mains bypass and inverter output.
- Advanced MPPT technology with efficiency of 99.9%.
- LCD screen and three LED lights can clearly indicate the status and data.
- Intelligent and variablespeed fan, efficiently dissipate heat and extend system life.

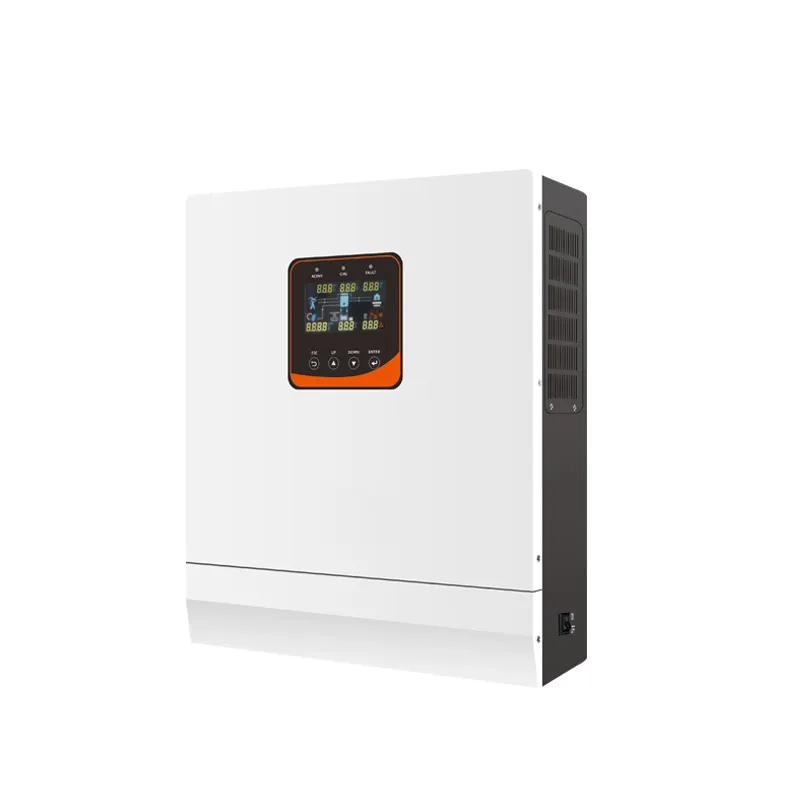

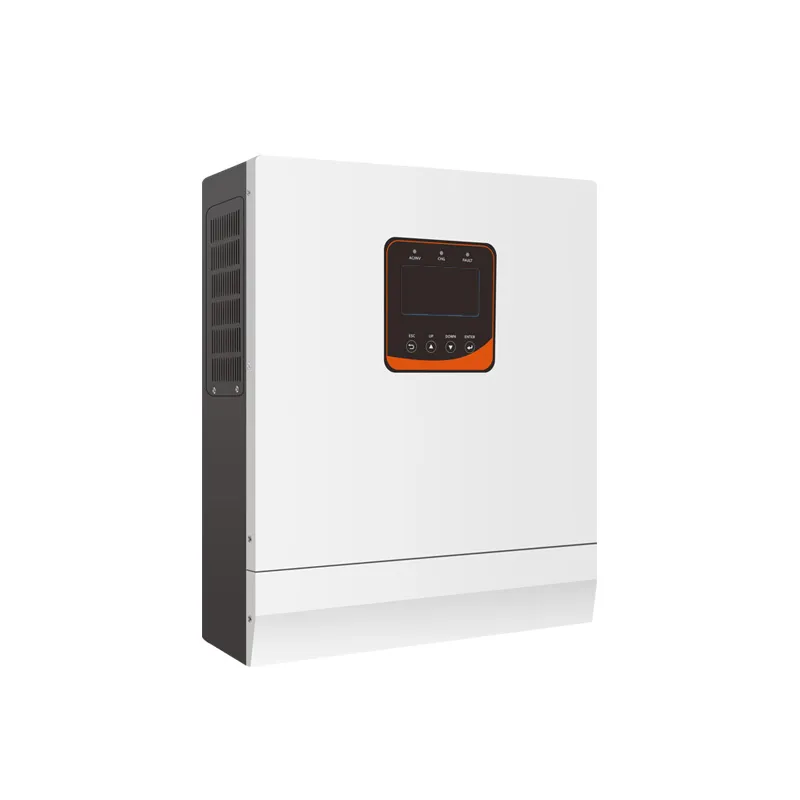

XRT series is a new all-in-one solar charge inverter, which integrates solar energy storage & utility charging energy storage and AC sine wave output. Support battery-free output and only PV start and load, with battery activation function.
It can be flexibly combined to achieve up to 9 parallel machines, The parallel system can output single-phase and three-phase AC voltage.
Features
- Three output modes
When the grid-connected function is enabled, grid-connected power generation or anti-reverse-current can be set, and it can
also be set to off-grid output mode.
- Four charging modes
Mains priority charging, solar priority charging, mains solar hybrid charging and solar only charging.
- Emergency function
- The host computer and the APP cloud communication
modify the parameters.
- Protection function
Data sheets
| Model | XRT48-3500 | XRT48-5500 | XRT48-10K |
| INVERTER OUTPUT | |||
| Rated Output Power [W] | 3500W | 5500W | 10000W |
| Max Apparent Power [VA] | 3500VA | 5500VA | 10000VA |
| Max Peak Power [W] | 6000W | 10000W | 15000W |
| Load Capacity with Motors [HP] | 2 HP | 4 HP | 6 HP |
| Rated AC Output [VAC] | 230 VAC (200 / 208 / 220 / 240VAC), 50 / 60Hz | ||
| Output Voltage Waveform | Pure Sine Wave | ||
| Inverter and Bypass Switching Time | 10ms（typical） | ||
| Parallel Capacity | 9 | ||
| Maximum Battery Inverter Efficiency | ≥93% | ||
| Overload Protection | 102%~110%，5min；110%~125%，10s；>125%，2s | ||
| BATTERY | |||
| Battery Type | Lithium / Lead-acid / User Defined | ||
| Rated Battery Voltage | 48 VDC | ||
| Battery Voltage Range | 40~60 VDC | ||
| Max.MPPT Charging Current | 60 A | 100 A | 200 A |
| Max.Mains Charging Current | 60 A | 60 A | 120 A |
| Max.Hybrid Charging Current | 80 A | 100 A | 200 A |
| Charging current error | ±3 ADC | ||
| Charging current error | Blown Fuse | ||
| PV INPUT | |||
| MPPT Quantity | 1 | 2 | |
| Max. PV array power | 4000 W | 5500 W | 5500+5500 W |
| Max. PV input current | 13 A | 22 A | 22+22 A |
| Max. Open Circuit Voltage | 500 VAC | 500+500 VAC | |
| MPPT Voltage Range | 120~450 VDC | ||
| MPPT Tracking Efficiency | 99.90% | ||
| Input Voltage Range[VAC] | 90~280/170~280 VAC | ||
| Frequency Range[Hz] | 50/60±0.3 Hz | ||
| Output Short Circuit Protection | Circuit breaker | ||
| Bypass Overload Current[A] | 30 A | 40 A | 63 A |
| SPECIFICATIONS | |||
| Dimensions [D*W*H] | 130*350*455 MM | 130*445*630 MM | |
| Weight | 11 KG | 12 KG | 27 KG |
| Waterproof level | IP20 | ||
| Working temperature range | -10~55 ℃ | ||
| Storage temperature range | -25~60 ℃ | ||
| Noise | <60 dB | ||
| Cooling method | Forced air cooling (variable speed of fan) | ||
| Embedded interface | RS485/CAN/USB/Dry contact | ||
| External module | WIFI/GPRS | ||
| Safety | CE(IEC62109-1) | ||
| EMC | EN61000 | ||
Download
Who is a 10KW Off-Grid Inverter For?
A 10kVA (which is typically around 10kW or 9kW continuous output) hybrid inverter is ideal for a large home with high electricity consumption or a strong desire for energy independence.
-
Whole-House Backup: It’s large enough to run an entire average-sized home, including high-load appliances, during a power outage.
-
Air Conditioning: It can comfortably run two or three 1.5-ton AC units simultaneously (depending on the type of AC and other running loads).
-
Major Appliances: Supports multiple refrigerators, washing machines, dishwashers, water pumps (1-2 HP), and a microwave oven.
-
Electric Vehicle (EV) Charging: It can help supply power to an EV charging station, ensuring you’re charging your car using solar power.
Where to Use Your OFF-Grid Inverter
Hybrid Solar System
Balcony Solar system
OFF-Grid SYSTEM
Related Products
Complementary Products for a 5.5KW off-grid inverter: Solar Panel, Battery Storage, Solar Mounting ect.
Solar Panel
Battery Storage
WHAT IS A BASIC SOLAR SYSTEM?
Understanding the basics of an off-grid solar system.
