XRSOLAR Balcony Solar system
Simply Plug In With The Cables Provided, And Power Up!
Balcony Solar system
XRSOLAR Balcony solar system can reduce apartment dwellers’ power bills.It’s comprised of solar panels, cables, an inverter, and smart plugs.
It plugs directly into electrical outlets, and no installation is necessary. Plus, it comes with flat cables, so you don’t have to drill holes to run wires between the indoors and the outdoors
Balcony Solar System- Key Componments
Balcony Solar Panels
Microinverter
A crucial component for balcony systems.It converts the DC electricity from the panels into alternating current (AC) electricity, which is the type used by household appliances.
Connection Cable & Plug
The AC electricity from the microinverter is then fed into a standard household electrical outlet
Optional Battery Storage
Some advanced systems include small batteries (e.g., LiFePO4) to store surplus energy for evening use or to maximize self-consumption.

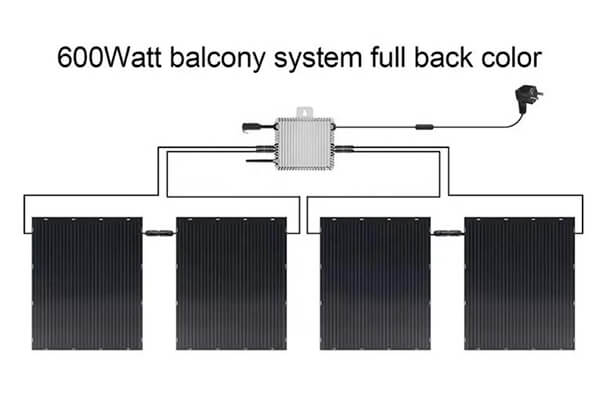

How Balcony Solar Systems Work
The fundamental principle is the same as larger solar installations, just on a smaller scale:
How to Install Solar Balcony System

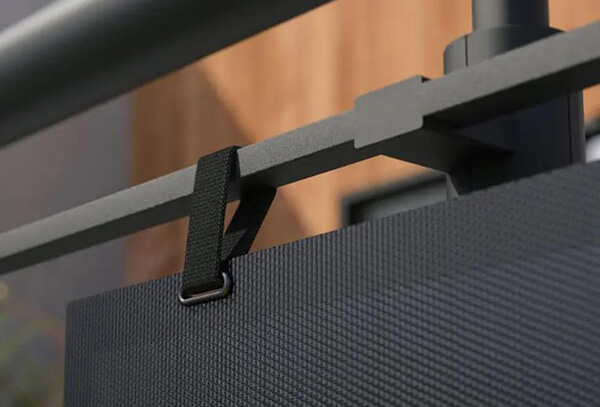

Flexible Solar Panles with Tieback

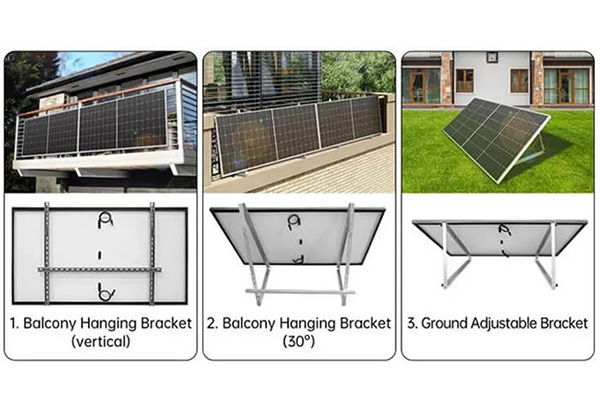

Rigid Solar Panel with Mount Brackets
Balcony Solar System Project
29,200kWh Of Electricity Production Over A Guaranteed 25-Year Lifecycle (Berlin Example)
Balcony Solar System Energy Production
In order to calcultate how much power an 800watt balcony solar system will add to the electricity production of a city in Germany over a 25 year lifespan, seveal factors need to be taken into account , including
- System efficiency
- Sunshine conditions
- Geographic Location
We can use the following steps to make an estimate, using Berlin ( a city in Germany) as an example:
Daily Generation:
0.8 KW X 4 hours = 3.2 Kilowatt Hours (KWh)
Annual Generation
3.2 KWh/Day x 365 Days/ Year = 1,168 KWh/ Year
25 Years of production
1,168 KWh/ Year x 25 years = 29,200 KWh
Balcony Solar System Kits

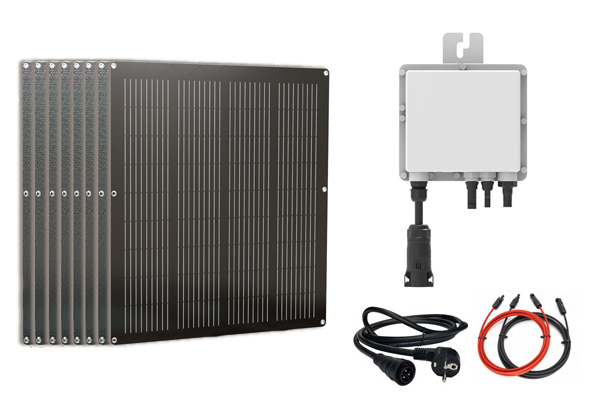

500w Balcony Solar System Kits
Micro Inverter | 300-500W | Single Phase | 1 MPPT

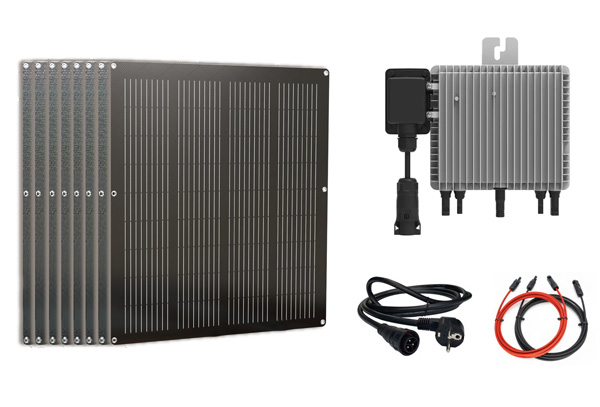

800w Balcony Solar System Kits
Micro Inverter | 600-1000W | Single Phase | 2 MPPT
